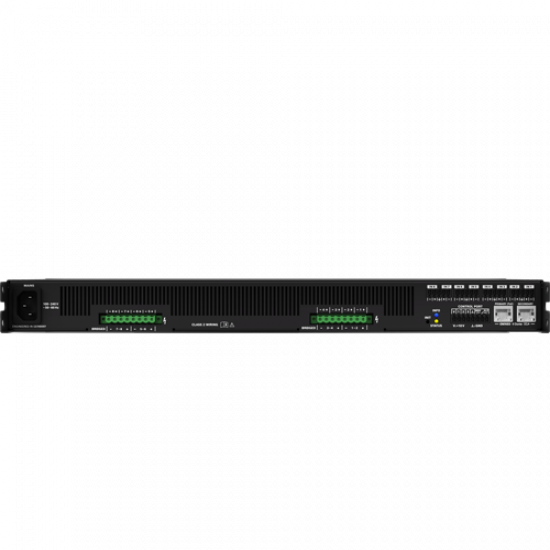

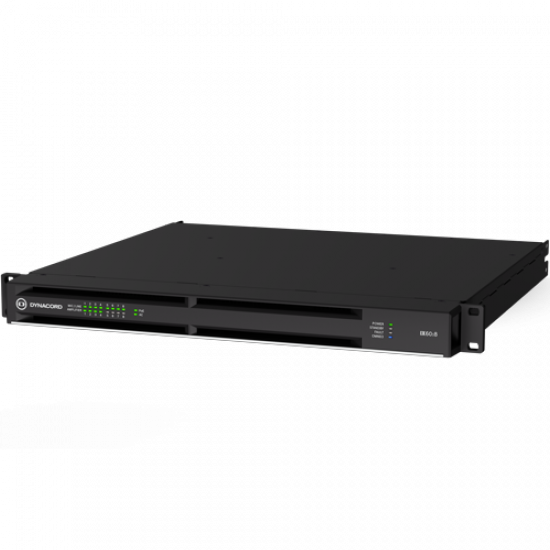

Усилвател DYNACORD IX60:8

8-Channel Networked Multichannel DSP Amplifier, 6 kW


The IX60:8 is a 8-channel networked DSP amplifier with 6 kW total output power. Able to drive Hi-Z or Lo-Z loads with powerTANK technology, the IX60:8 is ideal for a wide range of applications including sports venues, houses of worship, live performance spaces and hospitality. The integrated MXEstyle TaskEngine allows for system automation, scheduling, control, and integration to third party devices.
IX series is fully integrated in Dynacord‘s SONICUE Sound System Software and can be used as a SONICUE control server, for direct use with the WPN1 wall controller as well as TPC-1, iOS and Windows devices.

Features:

• 8-Channel Networked DSP Amplifier with 6 kW powerTANK for Hi-Z and Lo-Z operation
• 8 x 8 Dante with OCA/AES70 Remote Control, 4 Mic/Line Inputs Usable as Dante Break-in
• 96 kHz Fully Featured DSP Matrix Mixer and MXE-Style TaskEngine for System Logic, Automation, Scheduling and Integration
• ghostPOWER via PoE to Maintain DSP, Dante Network and Mic/Line Inputs
• High Efficiency ecoRAIL Technology for Lower Operating Costs

Technical Specifications:

• Max. Output Power, per Channel 4 Ohms: 8 x 600 W
• Max. Output Power, per Channel Hi-Z / 8 Ohms: 8 x 1000 W
• THD+N: < 0.1 %
• Crosstalk: < -80 dB
• Frequency Response : 20 Hz to 20 kHz (±1 dB)
• Stage Topology: Class D, Fixed Frequency
• Sampling Rate: 96 kHz Internal, Dante 48/96 kHz Switchable
• Signal Delay/Latency: 0.77 ms
• Signal Processing: Input Processing / Mix Matrix / User EQ / User Delay / Array EQ / Array Delay / Speaker EQ / Speaker X-Over / Speaker FIR / Speaker Limiters / Load Supervision /
• Mic/Line Input: Type 4 x 5-pin Euroblock, Male
• Channels: 8
• Gain: 0 to 60 dB
• Speaker Output Type: 2 x 8-pin Euroblock
• Network: 2 x RJ45, 1000base-T/100base-TX
• Redundancy Modes: Glitchfree (PRIMARY/SECONDARY), RSTP
• Backup Power Supply (ghostPOWER): 1 x PoE (IEEE 802.3af) on PRIMARY Port
• Network Audio Inputs/Outputs: 8 CH, 48/96 kHz, Dante
• GPIO Control Port: 3 x GPIO, Switchable Analog In/Digital In/Digital Out
• Type: 1 x 8-Pin Euroblock, Male
• Rated Power Consumption: 1050 W
• Power Supply Topology: Switching Mode Power Supply with Digitally Controlled Power Factor Correction (PFC)
• Protections: Audio Limiters, High Temperature, DC, HF, Short Circuit, Back-EMF, Peak Current Limiters, Inrush Current Limiters, Mains Current Limiter, Mains Over-/Under Voltage Protection
• Cooling: Front-to-Rear, Temperature Controlled Fans, Supervised
• Ambient Temperature Limits: +5 °C to +40 °C
• IEC Protection Class: Class I (Grounded)
• Electromagnetical Environment: E1, E2, E3
• Dimensions (W x H x D), mm: 483 x 44.1 x 447
• Weight: 8.8 kg
