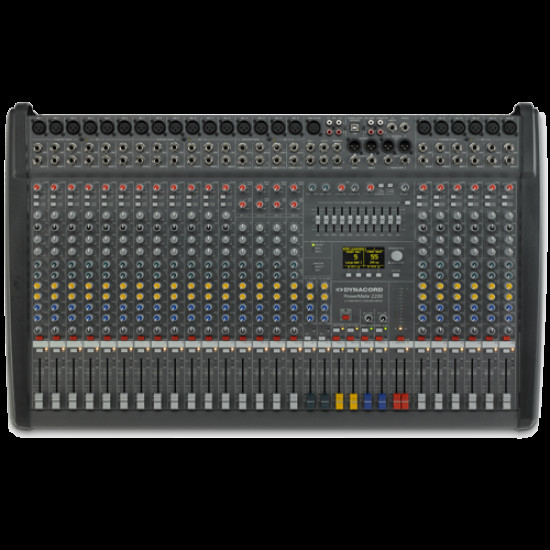

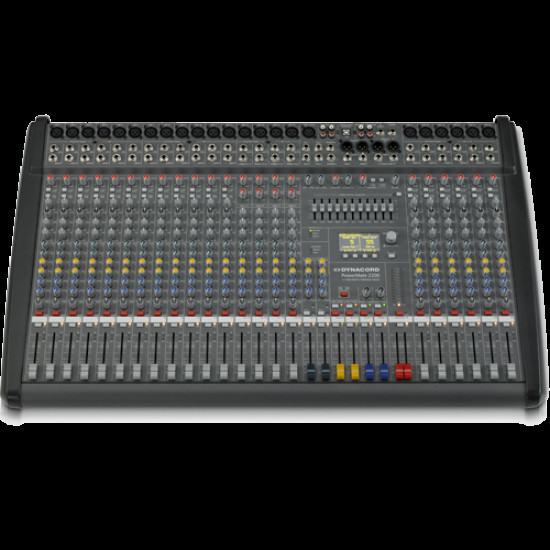

Пулт с усилвател DYNACORD PowerMate 2200-3

​Reference-Powermixer, 2x 1000 W/4 Ohm,18+4 channels


SPECIFICATIONS:
Channels (Mono + Stereo) 18 + 4
Auxiliaries (MON, FX, AUX) 2 Pre, 2 Post, 2 Pre/Post switchable
Maximum Midband Output Power,1 kHz, THD=1%, Dual Channel:
into 2.66 Ohms 2 x 1350 W
into 4 Ohms 2 x 1000 W
into 8 Ohms 2 x 600 W
Rated Output Power,THD=0.1%, Single Channel:
into 4 Ohms 2 x 900 W
into 8 Ohms 2 x 450 W
Maximum Output Voltage of power amplifier, no load 74 Vrms
THD at 1kHz, MBW=80kHz
MIC input to Master A L/R output, +16 dBu, typical < 0.005%
POWER AMP INPUTS to Speaker L/R output < 0.075%
DIM 30, power amplifier, 60Hz, 7kHz < 0.05%
IMD-SMPTE, power amplifier, 60Hz, 7 kHz < 0.015%
CMRR, MIC input, 1 kHz > 80 dB
Signal/Noise-Ratio, power amplifier, A-weighted, 4 Ohms 105 dB
Output Stage Topology, amplifier Class D
Equalization:
LO Shelving +/- 15 dB / 60 Hz
MID Peaking, mono inputs +/- 15 dB / 100 Hz .. 8 kHz
MID Peaking, stereo inputs +/- 12 dB / 2.4 kHz
HI Shelving +/- 15 dB / 12 kHz
Master EQ, 11-band (63, 125, 250, 400, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHZ +/- 10 dB / Q = 1.5-2.5
Filter:
LO-CUT, mono inputs f=80 Hz, 18 dB/oct
VOICE FILTER, mono inputs
FEEDBACK FILTER, MON1/2 70 Hz .. 7 kHz, Notch, -9 dB
Speaker Processing LPN, switchable
Display High Contrast OLED
Effects:
Type Dual stereo 24/48-bit multi effects processors
Effects presets 100 Factory + 20 User, Tap-Delay
Remote control Footswitch, MIDI

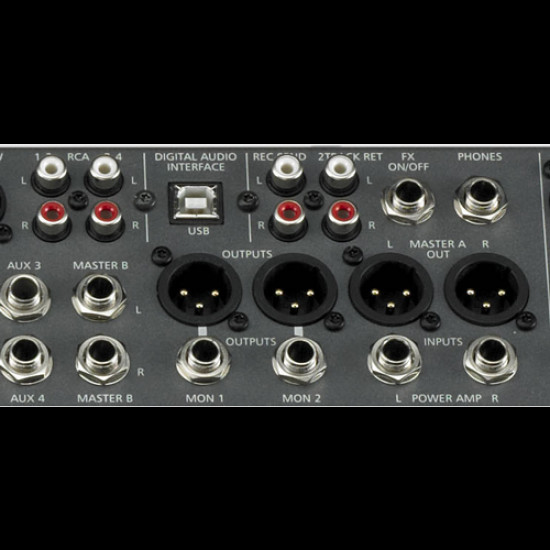

Digital Audio Interface Channels 4 In / 4 Out
AD/DA Conversion 24bit
Sampling Rate 44.1 / 48 / 88.2 /96 kHz
PC Interface USB 2.0, Female Type B
MIDI Interface 5-pin DIN connector, In / Out
Output Power Control Adjustale RMS Limiter
