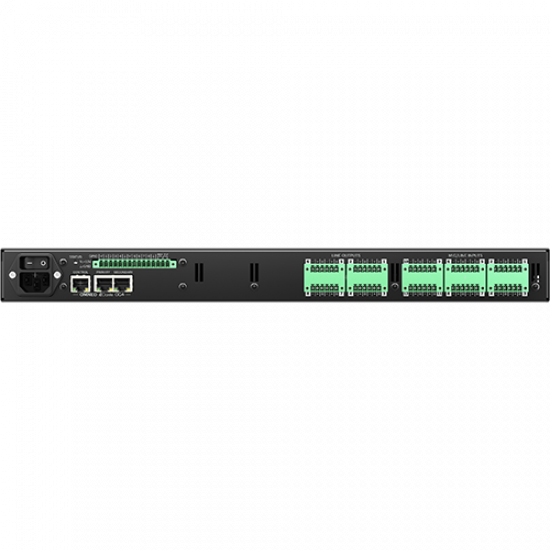

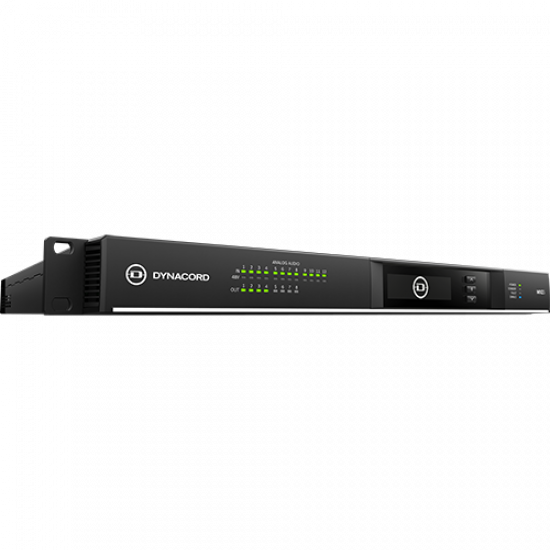

DYNACORD MXE5-64

DSP Matrix Mix Engine 76x72 Channels




Features:

• Open Architecture DSP Matrix for High Performance Audio Applications
• 2 Mic/Line Inputs, 8 Line Outputs, 8 Configurable GPIOs
• 64 x 64 Dante Channels
• TaskEngine for Sophisticated System Control and Integration
• Integrated into SONICUE Sound System Software

Technical Specifications:

• Frequency Response, Analog In to Analog Out: 20 Hz to 20 kHz (±0.5 dB), 48/96 kHz
• SNR, Analog In to Analog Out: > 115 dB
• EIN, 20 Hz to 20 kHz, A-Weighted: < -128 dB
• Phantom Power: +48 V/10 mA, Switchable per Analog Input
• Input Gain Analog: 0 dB to +60 dB
• Sampling Rate: 48 kHz/96 kHz, OMNEO/Dante Synchronized
• CPU: 2x SHARC ADSP-21469@450 MHz
• Processing Power: 900 MIPS, 5.4 GFLOPS
• Delay: 348 Seconds
• Signal Delay/Latency, Analog In to Analog Out, 48 kHz/96 kHz: < 0.45 ms/< 0.22 ms
• Signal Processing: 32/40 bit, Floating Point
• Filter: PEQ, Lopass, Hipass, Loshelv, Hishelv, X-Over, FIR
• Dynamics: Ducker, Compressor, Noisegate, AGC, ANC
• Limiter: Peak (PA) limiter, RMS/TEMP
• Pilot Tone: Generator, Detector with Notch
• Generators: Sine, Pink noise, White noise
• Mixer/Router: Router, Matrix Mixer, Auto Mixer
• Misc: VU Meter, Level, Polarity, Mute, Delay
• Special Algorithms: FIR-Speaker Processing
• Memory DSP Presets: 60

• Input Type: 12 Mic/Line Level Inputs, 8 Line Level Outputs, Electronically Symmetric
• Connectors: 10x 6-Pole Euroblock Connectors, 2 Channels Each
• Nominal Input/Output Level: +6 dBu/1.55 V
• Maximum Input/Output Level: +22 dBu/9.7 V
• Input Impedance, Active Balanced: 2.2 kOhms
• Output Impedance, Active Balanced: 47 Ohms
• Min. Load Impedance: 600 Ohms

• Network Type: 3x RJ45
• Standards: 1000Base-T/100Base-TX, Integrated Switch
• Network Audio Inputs/Outputs: 64 Channels, 48 kHz/96 kHz, Dante Format, 64 Flows

• GPIO Control Port Type: 15-Pole Euroblock Connector
• Ports and Operating Modes: 8x GPIO, Switchable Analog In/Digital / In/Digital Out
• Analog Input Range: 0 V to +11 V, 110 kOhms Input Resistance
• Digital Inputs ON: < 1.5 V / OFF: > 2.0 V, Internal Pull-Up (10 kOhms)
• Digital Outputs ON: Output Switched to GND, max. 200 mA / OFF: Open Collector (110 kOhms to GND)
• Reference Voltage Output: +10 V, max. 200 mA, Supervised, Short Circuit Protected
• READY/FAULT Contact: Galvanic Isolated Relay, max. 30 VDC/500 mA
• Mains Input: 1x IEC Appliance Inlet

• Display: Black/White OLED 256 x 64 Pixel
• Front Panel Indicators: 12 x Input LEDs (Signal/Clip)
• 12 x Phantom Power LEDs (+48 V)
• 8 x Output LEDs (Signal/Clip)
• 4 x Status LEDs (POWER, STANDBY, FAULT, OMNEO)
• Front Panel Operating: Elements 3 Push Buttons (UP, ENTER, DOWN)
• Rear Panel Indicators: 1 x Status LED (STATUS)

• Power Requirements: 100 V to 240 V, 50 Hz to 60 Hz AC
• Power Consumption: 50 W Typical, 55 W max
• Protections: High Temperature, Mains Over-/Undervoltage Protection

• Cooling: Front-to-Rear, Temperature Controlled Fan
• Ambient Temperature Limits: -5 °C to +45 °C
• Dimensions (W x H x D), mm: 483 x 43.5 x 471 mm (19", 1 RU)
• Weight: 6.0 kg
