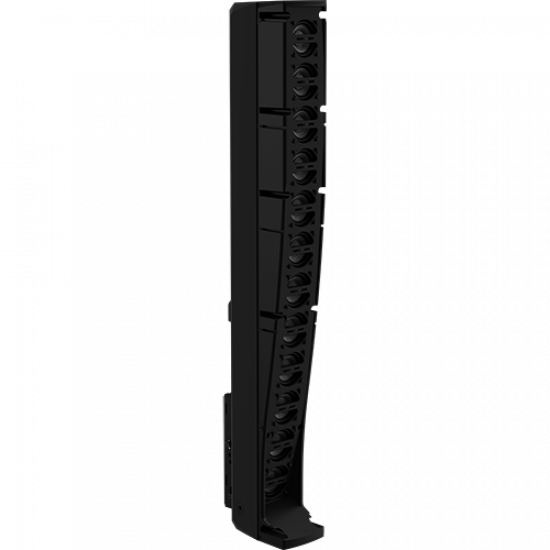

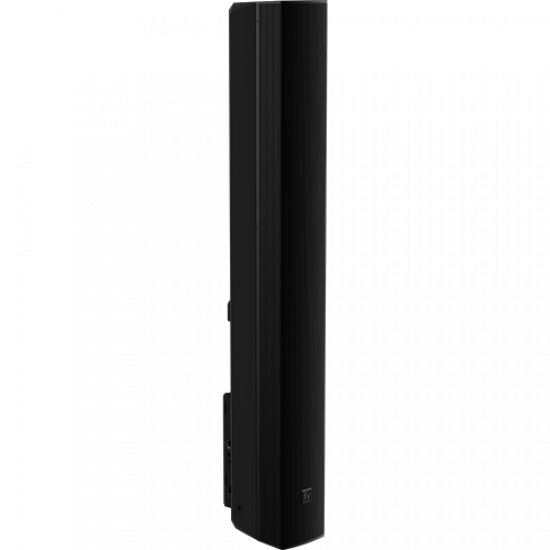

Electro-Voice LRC-1100-B

Line Radiator Colum Speaker • 100 cm • EN54 • Black


LRC Line Radiator Column is a line of passive column loudspeakers engineered specifically for installation.
LRC loudspeakers are simple, practical, and easy to install, offering a sleek, neutral industrial design that blends into a wide range of settings.
LRC loudspeakers can play a role in any install as main speakers, support speakers, and foreground and background speakers.

Features:

• 12 x 2.5-inch Full-Range Drivers Coupled to Proprietary PaSS Phase Plugs Produce a Narrow Vertical Pattern and Exceptional LF Extension
• User Can Select a Narrow or Wide Vertical Pattern (20°/40°), with a 5° Downward Bias to Focus Energy Towards the Listener
• Weatherized for Full Exposure, including IP56c Rating, and EN54-24 Type B Certified for All-Weather Applications
• SwifTilt Pan-Tilt Mounting Bracket (Patent Pending) Supports Most Mounting Situations and Installs Column as Close to the Mounting Surface as Possible
• Includes Rear Insert Points for Suspension

Technical Specifications:

• Frequency Range (-10 dB): 65 Hz - 14000 Hz
• Maximum SPL: 126 dB Narrow / 123 dB Wide
• Axial Sensitivity: 93 dB SPL 1W@1m Narrow / 91 dB SPL 1W@1m Wide
• Acoustic Down-Tilt (Relative to Horizontal): -5°
• Coverage Angle HxV: 130 x 20 (Narrow) / 40° (Wide)
• Power Handling (Continuous) (Lo-Z): 200 W
• Power Handling (Program) (Lo-Z): 400 W
• Peak Input Voltage (Lo-Z): 115 V
• Nominal Impedance (Lo-Z): 8 Ohms
• Minimum Impedance (Lo-Z): 7.1 Ohms @ 8 kHz
• Recommended High Pass: >/= 70 Hz Butterworth 24 dB/oct
• Transformer Taps 70 V Line: 120 W; 60 W; 30 W; 15 W; 8 W
• Transformer Taps 100 V Line: 120 W; 60 W; 30 W; 15 W
• Transducer Quantity x Size: 12 x 2.5 in Active Drivers + 3 x 2.5 in and 6.5 in Passive Radiators
• Connector Type: 4-pin Euroblock / Input + Pass Through
• Wire Size: 12AWG (Maximum)
• Suspension Points: 2 x M8
• Mounting: SwifTilt Multi-Angle Tilt + Pan Bracket
• Maximum Horizontal Pan Angle: +/-80° @ All Down-Tilt Angles
• Vertical Down-Tilt Angles: 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25°
• IP Rating: FW (Outdoor Full Exposure), IP56c
• Dimensions (H x W x D), mm: 950 x 110 x 150
• Weight: 7.6 kg

What's Included:

• Tilt Bracket
• Pan Bracket
• Gland Nut Weather Cover
• Dual-Ended Allen Key
• M8x20 mm Eyebolt (Pre-Installed)
