APART/BIAMP EN-CM6T6

EN 54-24 Certified Ceiling Speaker 1.5/3/6W / 100V, with steel fire dome

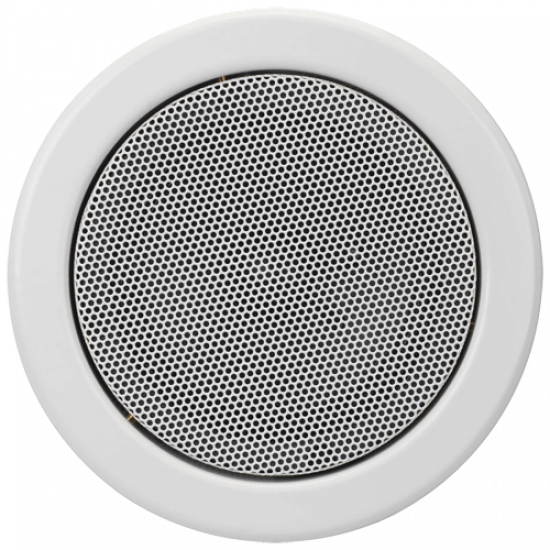

The Apart EN-CM6T6 is a 6” built-in ceiling speaker made of powder coated steel (RAL 9010 equivalent), equipped with a high efficiency full range speaker and a multi tap 100 volt transformer, all certified according EN 54-24. The unit is equipped with a ceramic speaker line connector block, thermal fuse and a metal fire dome.

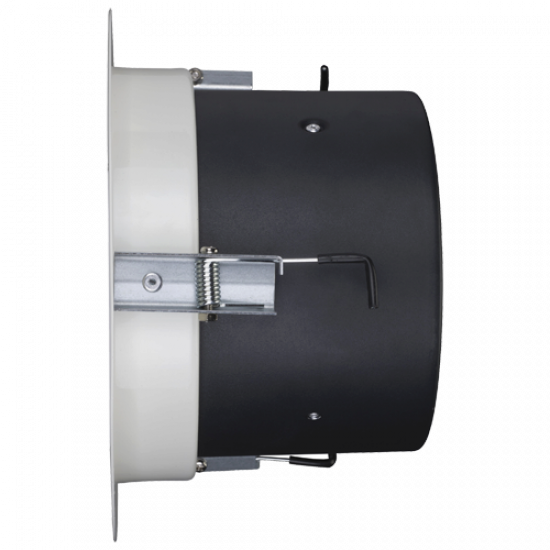

The installation of this speaker is easy thanks to the spring loaded clamps and the included PG16 cable gland. The speaker with its excellent intelligibility is a perfect budget oriented solution for background music, paging and evacuation systems messages.


Specifications:

• cutout 199 mm
• outside diam. 220 mm
• depth 137 mm
• loudspeaker system full range
• woofer size 6,5 inch
• woofer cone material paper
• mounting system 3 clamps
• 100V transformer power taps 6 - 3 - 1,5 watts
• impedance 8 ohms
• low impedance power 6 watts
• SPL 1W/1m 93,9 dB
• max SPL 1m 101,7 dB
• frequency response 140 - 24K Hz
• main construction material steel
• grille main material steel
• IP rating 50
• applicable low impedance No
• applicable in 100V Yes
• certificate ref 1438/CPR/0351
