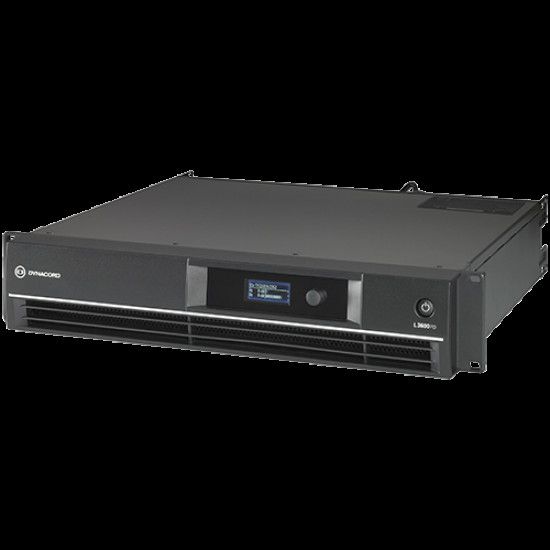

Усилвател DYNACORD L3600FD

​DSP Power Amplifier 2x1800W
Live performance DSP amplifier 2 x 1800W @ 4 ohm
Fully integrated professional speaker processing with FIR Drive technology
Market leading acoustic performance and rock solid reliability
True 2 ohm stability
Intuitive system control software, makes setup and control easy
Load Impedance 2ohm 2.7ohm 4ohm 8ohm
Maximum Output Power, SIngle Channel 2ohm: 3200W; 2.7ohm: 2700W; 4ohm: 1800W; 8ohm: 950W
Maximum Output Power, Dual Channel 2ohm: 3000W; 2.7ohm: 2500W; 4ohm: 1700W; 8ohm: 900W

More Specifications

Maximum Output Power, Bridged 4ohm: 6000W; 8ohm: 3400W
Maximum RMS Voltage Swing, THD = 1%, 1kHz 90.6V
Voltage Gain ref.1kHz 32.0dB
IMD-SMPTE, 60 Hz, 7 kHz <0.1%  DIM 30 <0.05% (3.15 kHz, 15 kHz)
Maximum Input Level +21dBu
Crosstalk < -80dB (ref. 1 kHz, at 100 W/4 ohm)
Frequency Response 10 Hz to 21 kHz (±1 dB)
Input Impedance, active balanced 20kohm
Signal-to-Noise Ratio (A-weighted) >109dB
Output Noise , A-weighted <-68dBu
Output Stage Topology Class H
Power Requirement 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 850 W (? Maximum Output Power @4ohm)
Protection Audio limiters, high temperature, DC, HF; Back-EMF, Peak current limiters, Inrush current; limiters, Turn on delay
Cooling Front-to-rear, 3-stage-fans
Safety Class I
Available Color Black
Height 88mm (3.46")
Width 483mm (19.02")
Depth 462.4mm (18.2")
Weight Net 18.2kg (40.12 lbs)
Signal Processing FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance
Mains Fuse 240 V/230 V: T10AH; 120 V/100 V: T20AH
Operating Temperature Range +5°C to +40°C (40°F to +105°F)
Total Harmonic Distortion <0.05% (1200 W/4 ohm MBW = 80 kHz, 1 kHz)
