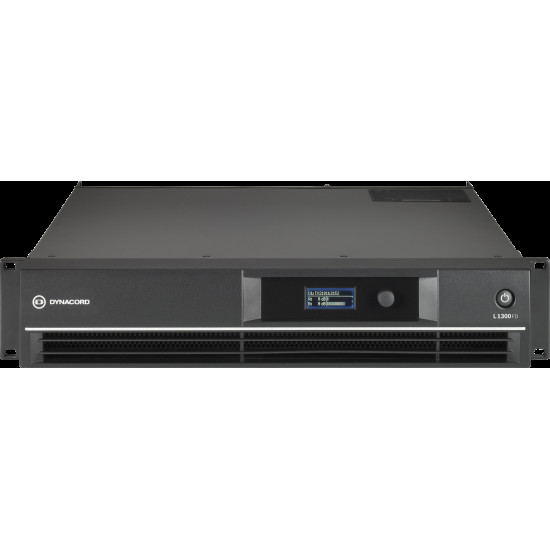

Усилвател DYNACORD L1300FD
- Наличност: Извън наличност
- Кат. номер: 9941
DSP Power Amplifier 2x650W
Live performance DSP amplifier 2 x 650W @ 4 ohm
Fully integrated professional speaker processing with FIR Drive technology
Market leading acoustic performance and rock solid reliability
True 2 ohm stability
Intuitive system control software, makes setup and control easy
Load Impedance 2 ohm 2.6ohm 4ohm 8ohm
Maximum Output Power, SIngle Channel 2?=1100W; 2.6ohm =950W; 4ohm=660W; 8 ohm=350W
Maximum Output Power, Dual Channel 2ohm=1000W; 2.6ohm =850W; 4ohm=600W; 8ohm=320W
More Specifications
Maximum Output Power, Bridged 4?=2000W; 8?=1200W
Maximum RMS Voltage Swing, THD = 1%, 1kHz 55.3 V
Voltage Gain ref.1kHz 32.0dB
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM 30 < 0.05% (3.15 kHz, 15 kHz)
Maximum Input Level +21 dBu
Crosstalk < -80dB (ref. 1 kHz, at 100 W/4 ?)
Frequency Response 10 Hz to 21 kHz (±1 dB)
Input Impedance, active balanced 20k?
Signal-to-Noise Ratio (A-weighted) >104dB
Output Noise , A-weighted < -68 dBu
Output Stage Topology Class AB
Power Requirement 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 550 W (? Maximum Output Power @4?)
Protection Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling Front-to-rear, 3-stage-fans
Safety Class I
Available Color Black
Height 88mm (3.46")
Width 483mm (19.02")
Depth 462.4mm (18.2")
Weight Net 12.9kg (28.44 lbs)
Signal Processing FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance
Mains Fuse 240 V/230 V: T10AH; 120 V/100 V: T20AH
Operating Temperature Range +5°C to +40°C (40°F to +105°F)
Total Harmonic Distortion < 0.05% (at 450 W/4 ? MBW = 80 kHz, 1 kHz)
