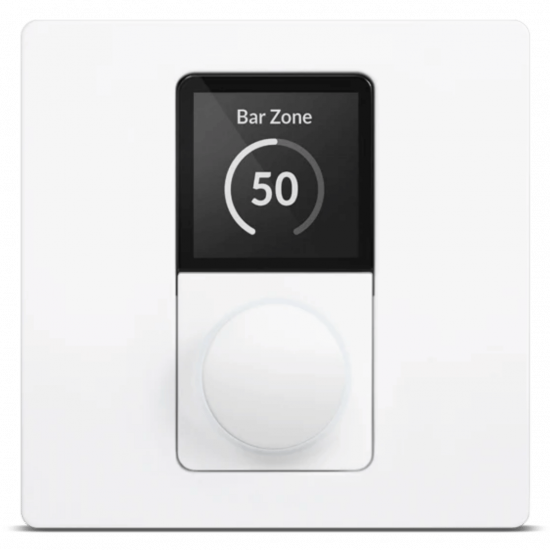

Зонален контролер за 100 V системи QUAD ZC-1
- Наличност: Извън наличност
- Кат. номер: QUAD ZC-1
ZC-1
The ZC-1 Wall Controller is a clean, intuitive control solution designed for modern installed audio systems. Finished to suit European and UK wall plates, it blends neatly into commercial interiors such as bars, restaurants, offices, hotels and multi-room venues.
Designed to work seamlessly with the QUAD Industrial QI 125.4 Digital Amplifier, the ZC-1 provides simple, reliable control of zone volume, source selection and key system functions without the need for a touchscreen or complex programming. Control feels immediate and familiar, making it ideal for everyday users as well as professional installers.
Powered entirely via PoE, installation is fast and tidy, with a single network cable carrying both power and data. This removes the need for local power supplies and simplifies system design.
Whether used in single-zone spaces or larger multi-zone installations, the ZC-1 delivers dependable, elegant control that complements QUAD Industrial’s flexible, network-based audio platforms perfectly.
| Specification | Value |
|---|---|
| Type | Wall Controller |
| Controller Colour | White |
| Maximum ZC-1 Per Amplifier | 8 |
| Display Screen Type | RGB, Transmissive / Normally Black |
| Display Screen Material | High gloss polished transparent acrylic |
| Display Colour Scheme | Blue, Dark, Light and Dark Orange |
| Display Screen Resolution | 240 x 240 pixels |
| Display Screen Dimensions - excludes border (mm) | 27.72 x 27.72 |
| Display Screen Area - excludes border (sqmm) | 768.4 |
| Connection and Data Protocol | RJ45 / CAT5e |
| Standby Modes | 6 settings available: 30 secs, 2 mins, 5 mins, 15 mins, 30 mins, 60 mins |
| IP Rating | IP 30 |
| Operating Temperature Range | 0-40C (32-104F) |
| Exterior and Mechanical Parts Material | Plastic (ABS-PC) |
| Base Construction and Shield Material | Pre-galvanized steel |
| Maximum Cable Length (CAT 5e) | 100m (328ft) |
| Power Consumption | PoEClass1/3.84Wmax |
| Power Supply | Power to the RJ45 ethernet port on the rear of device using a category 5e cable (or faster STP) with the use of a standard PoE switch, or PoE injector |
| Unpacked - Height (mm) | 87 |
| Unpacked - Width (mm) | 87 |
| Unpacked - Depth (mm) | 43 |
| Mounting Holes Distance (mm) | 60 |
| Packed - Height (mm) | 70 |
| Packed - Width (mm) | 125 |
| Packed - Depth (mm) | 150 |
| Weight - Nett (kg) | 0.2 |
| Weight - Gross (kg) | 0.26 |
