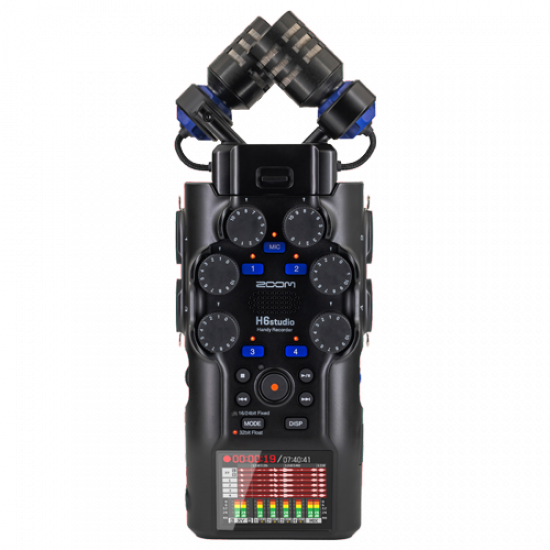

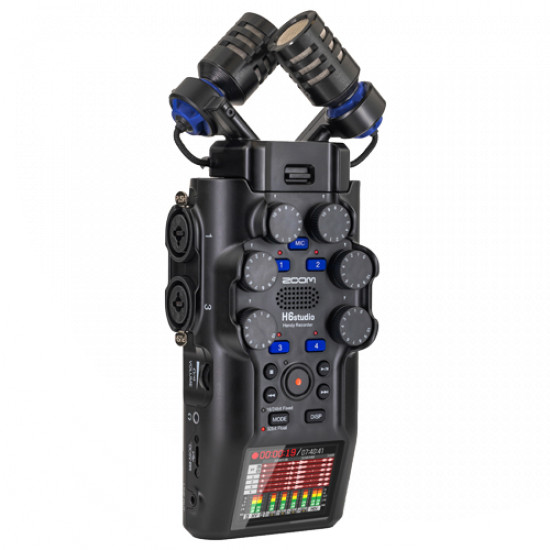

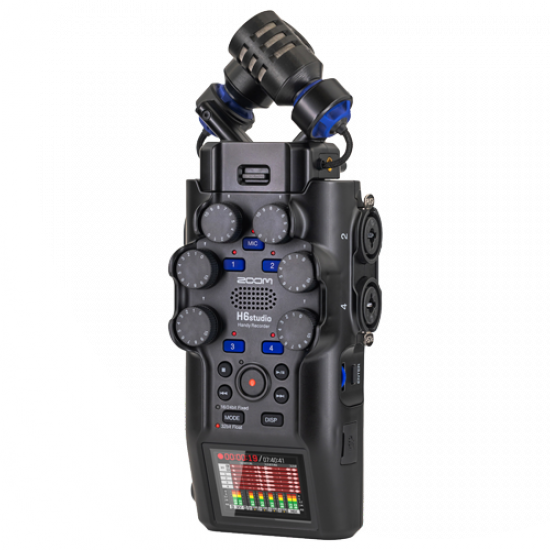

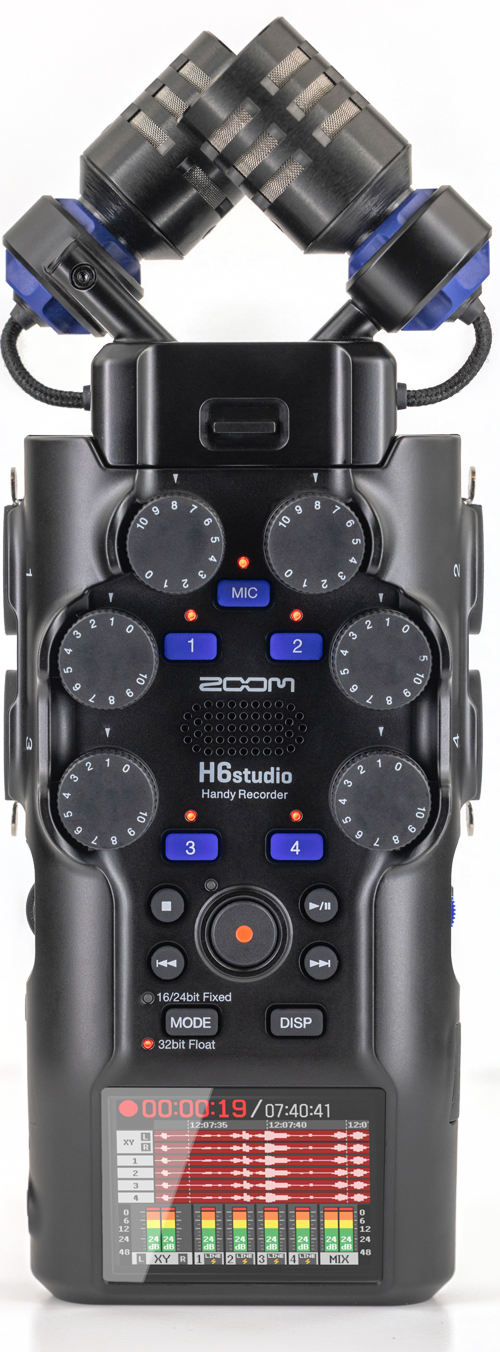

ZOOM H6studio

Studio Quality Sound for Any Recording, Anywhere

The H6studio features large-diaphragm XY microphones, four studio-grade preamps, and 32-bit float recording with dedicated gain knobs. Built with F-Series technology, it’s the most advanced Handy Recorder to date.



6 Tracks + Stereo Mix

The H6studio supports sampling rates from 44.1 to 192 kHz. Capture up to 8 tracks* at once - 6 individual tracks plus a stereo mix.
*Up to 8 tracks (6 inputs + 2 stereo mixes) at 96kHZ
Up to 6 tracks (6 inputs) at 192kHZ

Limiters That Think Ahead

The H6studio’s advanced “look-ahead” limiters catch peaks early to prevent distortion, avoiding clipping in 16/24-bit and removes the need for post-recording adjustments when using 32-bit float.

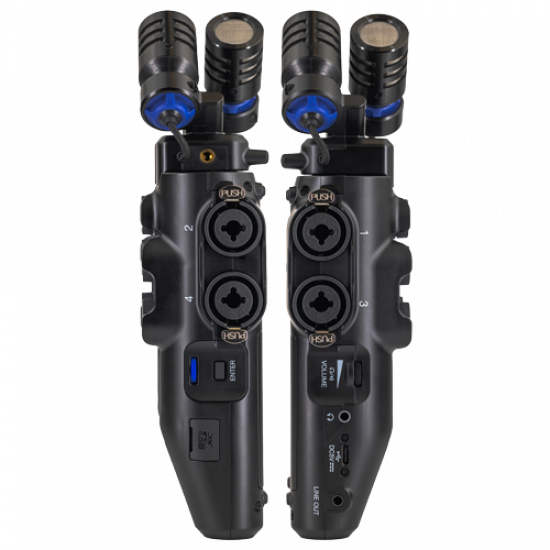

Four XLR/TRS Inputs + Stereo Mini Jack

The H6studio includes four locking XLR/TRS inputs with +48V phantom power and +4dBu line-level support, plus a stereo mini jack*.
*supports plug-in powered mics.

Next Generation Capsule System

The H6studio’s 3.0 capsule system* supports 32-bit float and gives creators more options to use the right mic for their recording.
*Compatible with SSH-6e, EXH-6e, WLM-1, XYH-6e

Wireless Capsule

The WLM-1* is a dual-channel wireless system that comes with two transmitters and a receiver. The transmitter's built-in microphone captures clear, balanced audio at volumes up to 130 dB SPL.
* Available in 2026, compatible with Capsule System 3.0

See Your Sound in Real Time

See both the input level peaks and the recording waveforms at the same time. Tap the DISP key to switch between level meter only or waveform view.

Versatile Output Options

Headphone Out
Use the loud 20 mW headphone output to monitor or listen back to your recordings in any environment.

Line Out
Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.

Onboard Speaker
The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.

USB Audio Interface
The H6studio is a 6-in/2-out USB audio interface for Mac, Windows, iOS, and Android, supporting 32-bit float and 16/24-bit recording. Stream live and simultaneously record a backup to microSD.

Precision Sync, Wireless Freedom

The TCA-1 timecode adapter* generates and outputs timecode or jams to an external clock with .5 ppm accuracy. You can also receive wireless timecode from the ATOMOS® UltraSync BLUE.**
*Available separately, releasing spring 2026
**BTA-1 Required

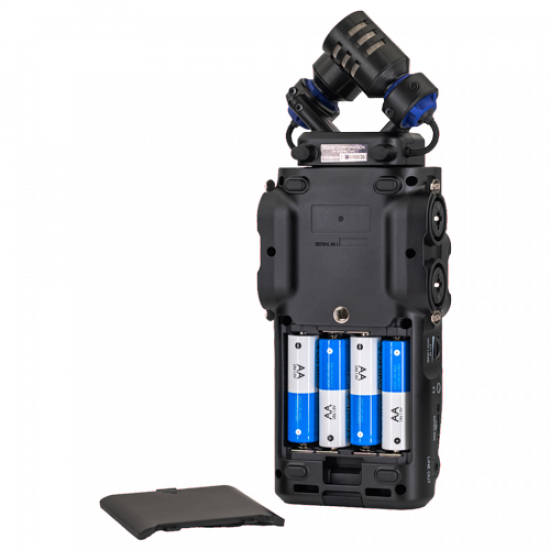

15-Hour Battery

Operates on 4 AA batteries for up to 15 hours of recording. Power through the USB port using a USB mobile battery or AC adapter*.
*AD-17 sold separately


Premium Features:

• Mono mode for recording interviews, narration, and vocals
• Low-cut filter to suppress low-frequency noise
• Normalize and export audio files in 24-bit/16-bit WAV formats
• Variable speed playback (0.5 to 2.0x) and A-B repeat playback of recorded files
• The recording start tone function useful for aligning audio with video
• The H6studio uses microSDHC/microSDXC cards up to 2TB*

*SD card sold separately
