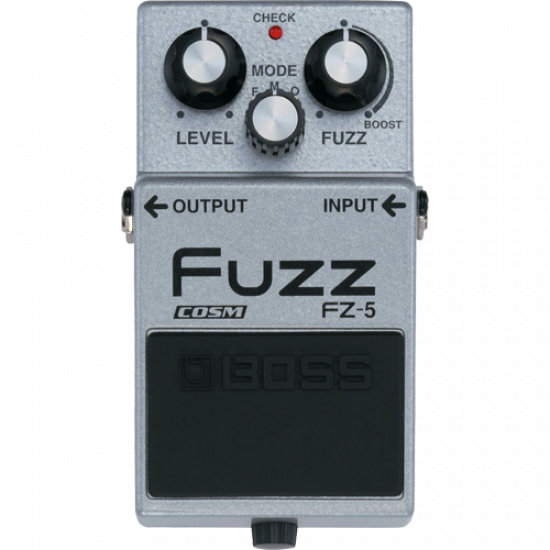

Китарен ефект Boss FZ-5

Guitar effect - Fuzz • A Distorted Blast from the Past


Overview
• Vintage sounds inspired by famous fuzz pedals of the ’60s and ’70s
• Uses advanced COSM technology to recreate classic fuzz
• BOOST control for more aggressive tone
• Road-tough BOSS metal construction

Specifications
• Nominal Input Level -20 dBu
• Input Impedance 1 M ohm
• Nominal Output Level -20 dBu
• Output Impedance 1 k ohm
• Recommended Load Impedance 10 k ohms or greater

Controls
• Pedal switch
• LEVEL knob
• FUZZ knob
• MODE knob

Indicator
• CHECK indicator (Serves also as battery check indicator)

Connectors
• INPUT jack
• OUTPUT jack
• AC adaptor jack (DC 9 V)

Power Supply
• DC 9 V
• Dry battery 6F22 (9 V) type (carbon)
• Dry battery 6LR61 (9 V) type (alkaline)
• AC Adaptor (PSA series: optional)

Current Draw 36 mA (DC 9 V)

Expected battery life under continuous use
• Carbon: 3 hours
• Alkaline: 10 hours
* These figures will vary depending on the actual conditions of use.

Accessories
• Owner's Manual
• Leaflet (USING THE UNIT SAFELY
• IMPORTANT NOTES, and Information)
• MODE sticker
• Dry Battery 006P/9V (6LR61)

Options: AC Adaptor (PSA series)

Size and Weight (incl. battery)
• Width (W) 73 mm
• Depth (D) 129 mm
• Height (H) 59 mm
• Weight 440 g
