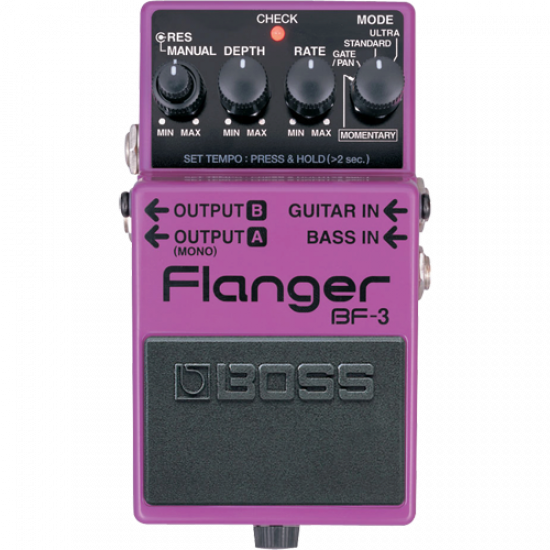

Китарен ефект Boss BF-3

Guitar effect - Flanger • A Legendary Flanging Pedal is Reborn.


Overview
• BOSS' best flanging effects in a compact pedal
• New Ultra and Gate/Pan modes for ultra-fat flanging with very low noise
• Momentary mode turns flanging on instantly
• Tap tempo adjustable via pedal
• Independent Guitar and Bass inputs and stereo outputs

Specifications
• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohms
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Delay Time 0.3 mS to 14.4 ms (GUITAR IN), 0.3 ms to 6.3 ms (BASS IN)
• LFO Speed 100 mS to 18 S
• Residual Noise -95 dBu (IHF-A Typ.)

Controls
• Pedal Switch
• MANUAL Knob
• RES (resonance) Knob
• DEPTH Knob
• RATE Knob
• MODE Knob

Indicator: CHECK Indicator (Serves also as tempo and battery check indicator)

Connectors
• GUITAR IN Jack
• BASS IN Jack
• OUTPUT A (MONO) Jack
• OUTPUT B Jack
• AC adaptor Jack (DC 9 V)

Power Supply
• DC 9 V: Dry battery (9 V type)
• AC Adaptor (PSA-series: optional)

Current Draw: 40 mA (DC 9 V)

Accessory
• Dry battery (9 V type)
• S-006P/9 V (6F22/9 V)
• Owner's Manual

Option AC Adaptor: PSA-Series

Size and Weight
• Width (W) 73 mm
• Depth (D) 129 mm
• Height (H) 59 mm
• Weight 420 g
