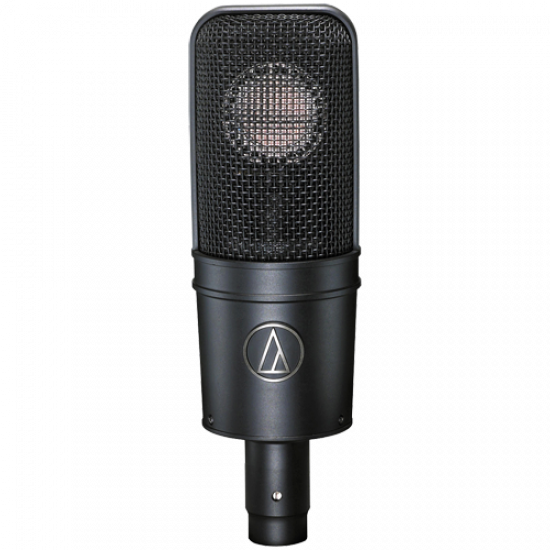

Кондензаторен микрофон Audio-Technica AT4040

Side-address condenser microphone

Technically-advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics
Externally polarized (DC bias) true condenser design
Exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
Custom shock mount provides superior isolation

ELEMENT Externally-polarized (DC bias) condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY -32 dB (25.1 mV) re 1V at 1 Pa
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 145 dB SPL, 1 kHz at 1% T.H.D.;
155 dB SPL, with 10 dB pad (nominal)
NOISE 12 dB SPL
DYNAMIC RANGE (typical) 133 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 82 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 4.2 mA typical
SWITCHES Flat, roll-off;
10 dB pad (nominal)
WEIGHT 12.7 oz (360 g)
DIMENSIONS 6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
