Безжичен микрофон брошка (lavalier) SHURE BLX14E/CVL-H8E

SHURE BLX14E/CVL-H8E Безжичен микрофон брошка (lavalier)

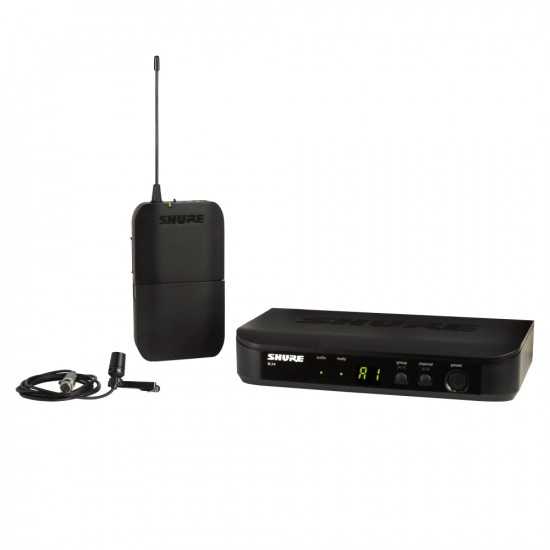

BLX14E/CVL е безжична система с микрофон-брошка CVL. Подходяща за презентатори, водещи, лектори и др. приложения с речева цел.

• Микрофон CVL - Електретен кондензатор
• Насоченост: Еднопосочен (кардиоид)
• До 14 часа непрекъсната работа с 2 батерии АА
• 100 м радиус на предаване (при идеални условия)
• Звук с професионално качество, проста настройка
• Сканиране на честоти и избор с едно докосване
• Възможност за изполване на до 12 системи на една честотна летна
• H8E - работна честота - 518-542 Mhz

Съдържа:

• Микрофон-брошка CVL
• BLX4 Единичен приемник
• BLX1 Бодипак предавател
• PS24 Захранване
• Щипка за микрофон
• Ветробран за микрофон-брошка
• Комплект AA батерии
• Ръководство за потребителя

Specifications:

System

• Working Range: 91 m (300 ft) Line of Sight
• Note: Actual range depends on RF signal absorption, reflection and interference.
• Audio Frequency Response: 50 to 15,000 Hz
• Note: Dependent on microphone type
• Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone, 0.5%, typical
• Dynamic Range: 100 dB, A-weighted, typical
• Operating Temperature: -18°C (0°F) to 57°C (135°F)
• Note: Battery characteristics may limit this range.
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

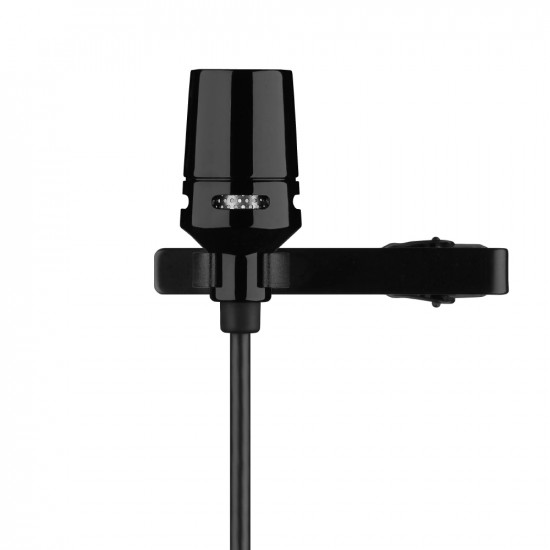

CVL

• Type: Electret Condenser
• Frequency Response: 60 Hz to 12,000 Hz
• Polar Pattern: Unidirectional (Cardioid)
• Output Impedance @ 1 kHz: 600 Ω
• Audio Output Level: -43.5 dBV/Pa
• Signal-To-Noise Ratio [1] @ 1 kHz: 72 dB
• Maximum SPL [1] 1000 Ω load, @ 3%THD: 139.0 dB
• Dynamic Range [1] @ 1 kHz, 1000 Ω load: 117.0 dB
• Equivalent Output Noise [1] typical, A-Weighted: 22 dB
• Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
• Cable: 1.3 m (50 in.)
• Connector: TA4F
• Net Weight: 25 g (0.88 oz.)
• [1] Measurements taken using RK100PK preamp set @ 0 dB using 8k bias resistor.
• *All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity.

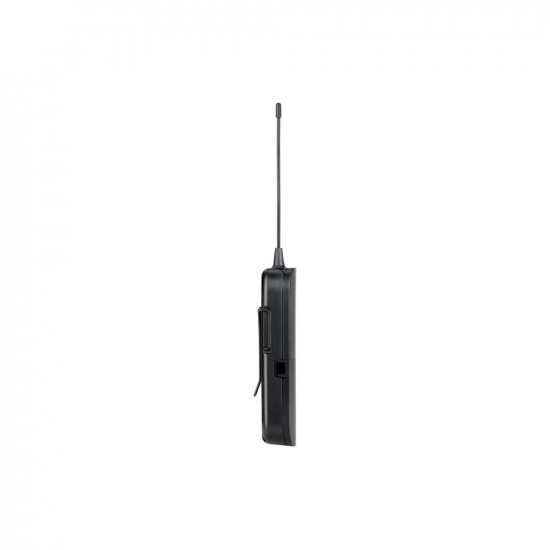

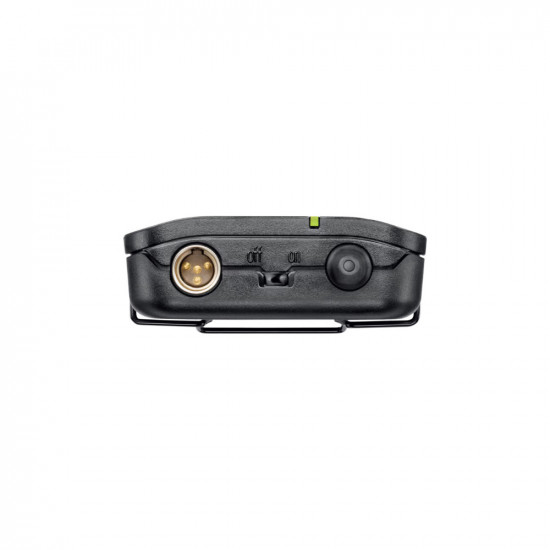

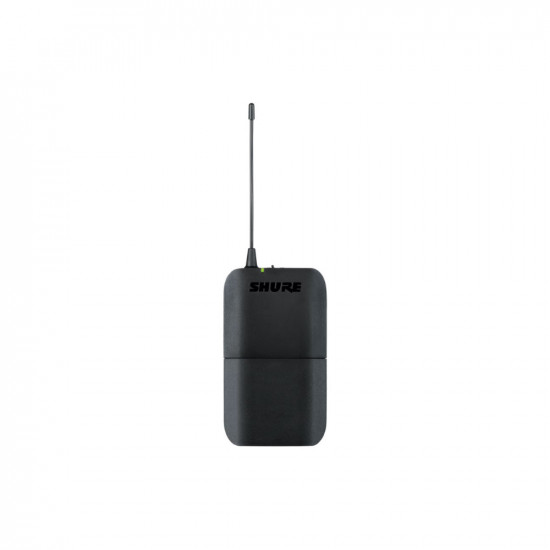

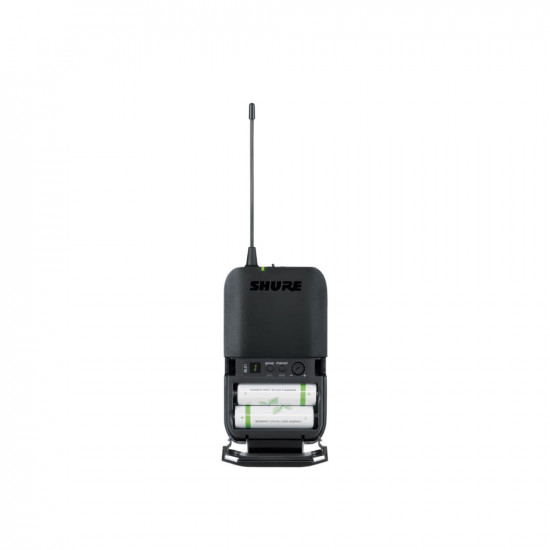

BLX1

• Audio Input Level
• max: -16 dBV maximum
• min: (0 dB) +10 dBV maximum
• Gain Adjustment Range: 26 dB
• Input Impedance: 1 MΩ
• RF Transmitter Output: 10 mW, typical, varies by region
• Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
• Weight: 2.6  oz. (75 g), without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14  hours (alkaline)

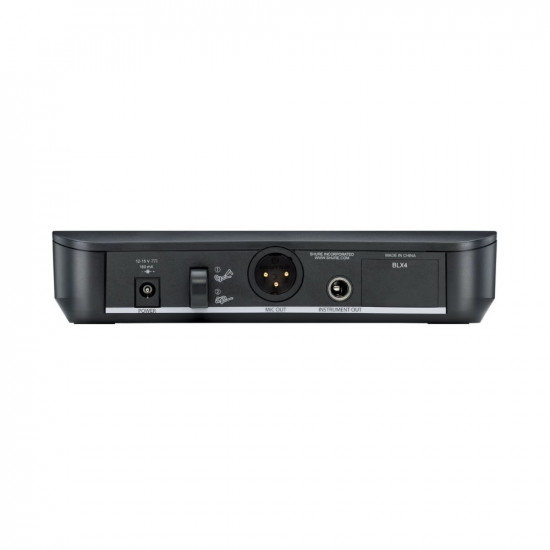

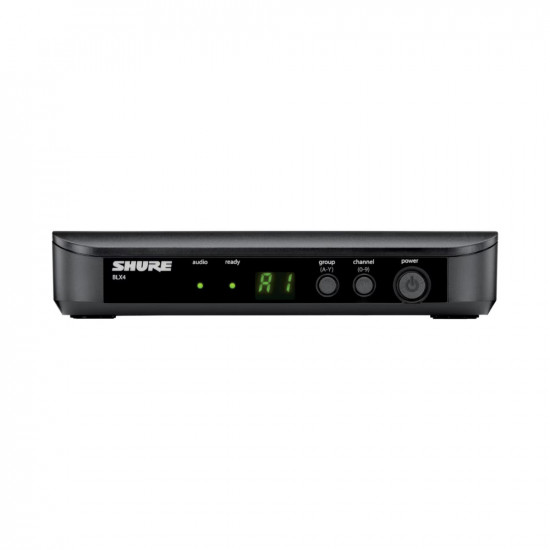

BLX4

• Output Impedance
• - XLR connector: 200 Ω
• - 6.35 mm (1/4") connector: 50 Ω
• Audio Output Level: Ref. ±33 kHz deviation with 1 kHz tone
• XLR connector: –27 dBV (into 100 kΩ load)
• 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image Rejection: >50  dB, typical
• Dimensions: 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
• Weight: 8.5 oz. (241 g)
• Housing: Molded ABS
• Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by an external power supply (tip positive)
