HED Audio SMART-4X25W TS7 ANDROID7 (LT BA-420ADT)

Smart Audio System with 7" HD Тouch-screen, Android 7 OS, 4 Channel x 20W, 2-Zones, HDMI


8-channel small bluetooth multi-home audio system, equipped with micro USB/TF can power 4 to 8 pieces of speakers in your home or small commercial area. It uses a high efficiency class-D amplifier for a maximum output of 4*20 watts, low-impedance speakers. The cool display shows relevant track music info. Plus, you can control everything –seek, change tracks, and adjust the volume – using the included wireless infrared remote controller.

Main Features:
• 2 Zone control of music

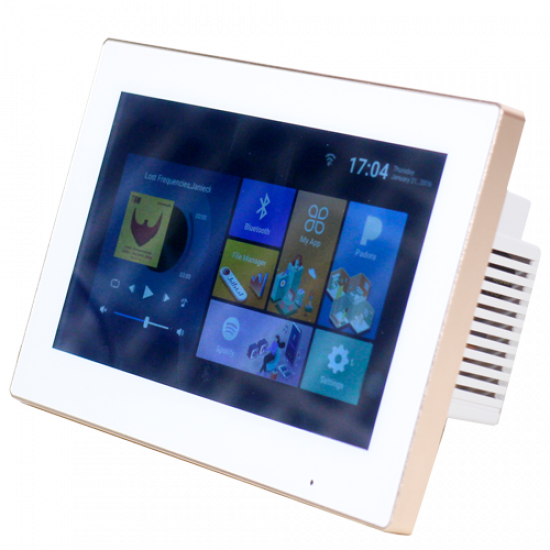

• 7 inch touch screen for easy access and control of the system
• Multi-protocol smart home docking including RS485, WiFi, Tuya etc.
• Spotify and Pandora music APPs support
• External Bluetooth devices support for audio playback and control
• HDMI Out
• Audio Input and Output;
• Subwoofer Output;
• TF card and OTG 2.0USB interface, USB can be connected to the hard disk;
• Suitable for homes, commercial areas, kid’s room, etc.

Technical Specifications:
• Output Power Rated/Max: 4x20W / 4x40W
• Speaker Impedance: 4-8 Ohm
• OS: Android 7.1
• RAM: 1 GB
• ROM: 8 GB
• CPU: ARM Quad-Core Cortex-A35 1.2GHz,
• Display: 7", 1024x600 IPS capacitive touch screen,
• Bluetooth range: 10m
• Frequency Response: 20 Hz-20 kHz (+/-2dB)
• THD: 0.03% (1W, 1kHz)
• SNR: 98dB
• Audio Formats supported: MP3, WMA, WAV, AAC, WAW, APE, OGG, etc.
• Video Formats supported: MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc.
• Power Requirements: 110-250V AC
• Wiring Box Dimensions (WxDxH): 110x175x59mm,
• Device Dimensions (WxDxH): 129x184.6x38mm,
• Weight: 0.7kg.
