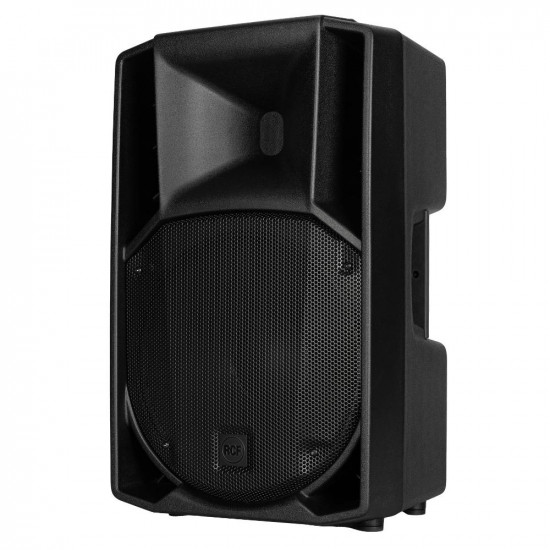

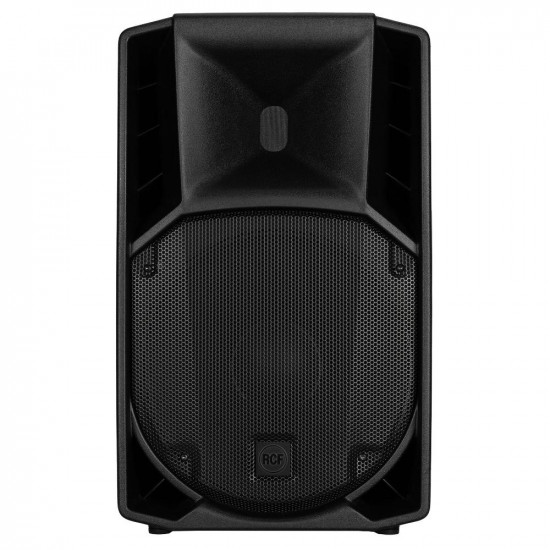

Активна двулентова тонколона 12" RCF ART 732-A MK5

RCF ART 732-A MK5 Активна двулентова тонколона 12"

• 131 dB Max SPL
• 1400 WATT 2-way peak power
• 90° x 60°, Wide dispersion constant directivity horn
• Innovative DSP Processing
• 3,0" Titanium diaphragm Compression Driver.
• 12" Woofer
• FiRPHASE Technology
• XBOOST Low Frequencies Enhancer

Specifications

Acoustical Specifications

• Frequency Response: 50 Hz ÷ 20000 Hz
• Max SPL @ 1m: 131 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°

Transducers

• Compression Driver: 1 x 1.0'' neo, 3.0'' v.c
• Woofer: 12'', 2.5'' v.c

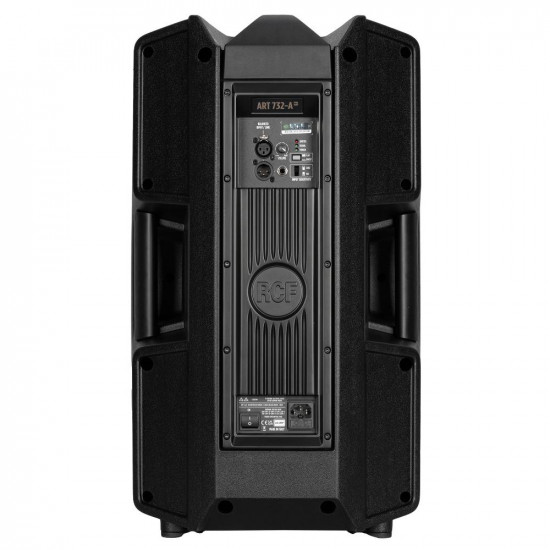

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

Processor Section

• Crossover Frequencies: 700
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, MIC/Line

Power Section

• Total Power: 1400 W Peak
• High frequencies: 400 W Peak
• Low frequencies: 1000 W Peak
• Cooling: Convection
• Connections: VDE

Standard Compliance

• Safety agency: CE compliant

Physical Specifications

• Hardware: 2 x M10

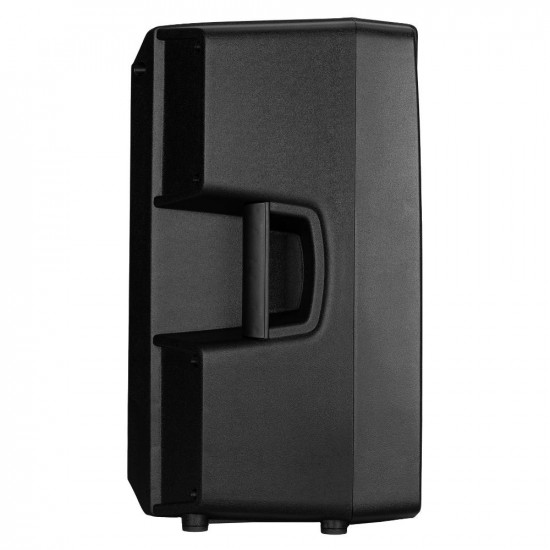

• Handles: 1 on top, 1 each side
• Pole mount/Cap: Yes
• Colour: Black

Size

• Height: 637 mm / 25.08 inches
• Width: 387 mm / 15.24 inches
• Depth: 363 mm / 14.29 inches
• Weight: 17.8 kg / 39.24 lbs

Shipping Information

• Package Height: 680 mm / 26.77 inches
• Package Width: 440 mm / 17.32 inches
• Package Depth: 420 mm / 16.54 inches
• Package Weight: 20.6 kg / 45.42 lbs
