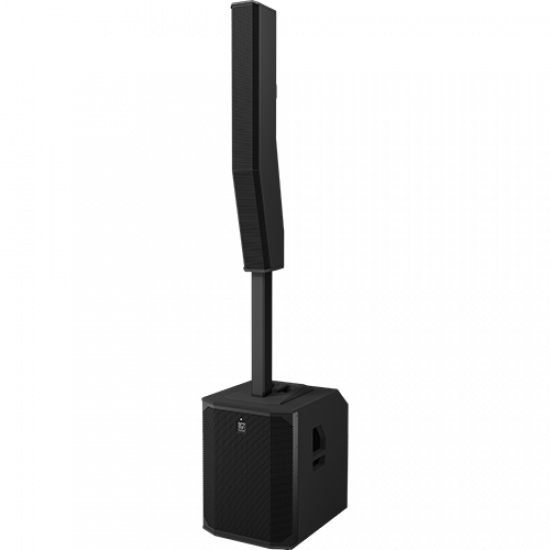

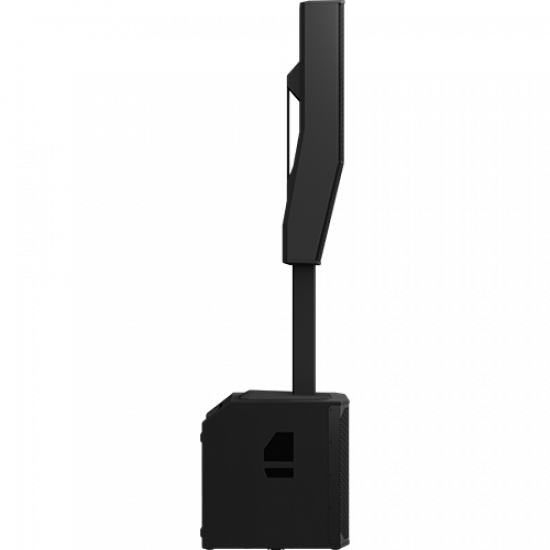

Музикална система Electro-Voice EVOLVE70-KB

Column Loudspeaker System


EVOLVE 70 expands the EVOLVE Column Loudspeaker system family. This addition delivers the EVOLVE’s audio performance, portability and ease of assembly in a larger format, catering to the evolving needs of professional users including pro DJs, bands,
production companies, event organizers, and venues. EVOLVE 70 features a 15-inch subwoofer, designed to provide deeper bass and optimum sound quality for events with 300 to 500 attendees or more. Building on the success and renowned audio quality of
the EVOLVE 50, EVOLVE 70 embodies a premium solution that combines portability and a relatively compact form factor with massive output, waveguideformed coverage and longer throw for bigger shows/events.
EVOLVE 70 is integrated into the QuickSmart Mobile App ecosystem, which allows the user to control it as part of a system with other Bluetooth-enabled ElectroVoice portable speakers. EVOLVE 70 features industry standard connectors for microphones and line-level signals, including XLR/TRS combo jacks, stereo RCA line input, AES/EBU digital audio, and Bluetooth® true wireless stereo streaming. Available in black or white finishes, the EVOLVE 70 Column Loudspeaker system includes a transport shoulder bag for column and pole. The system also offers a select complement of accessories such as a short pole, a padded slip cover for the subwoofer, and a subwoofer transport dolly board, all sold separately.

Technical Specifications:

• Column: 8 x 4.7-inch Neodymium Drivers
• Subwoofer (1) 15-inch Woofer with 3-inch Voice Coil
• Frequency Response (-3 dB): 40 Hz – 18000 Hz
• Frequency Range (-10dB): 35 Hz – 20000 Hz
• Max. SPL @1 m (dB): 133 dB
• Coverage Angle, H x V: 120° x 25°
• Amplifier Rating: 2000 W
• Power Consumption: 100 - 240 VAC, 50 - 60 Hz, 2.1 ~ 0.9 A
• LF Channel Rating: 1000 W
• HF Channel Rating: 1000 W
• Crossover Frequency: 160 Hz

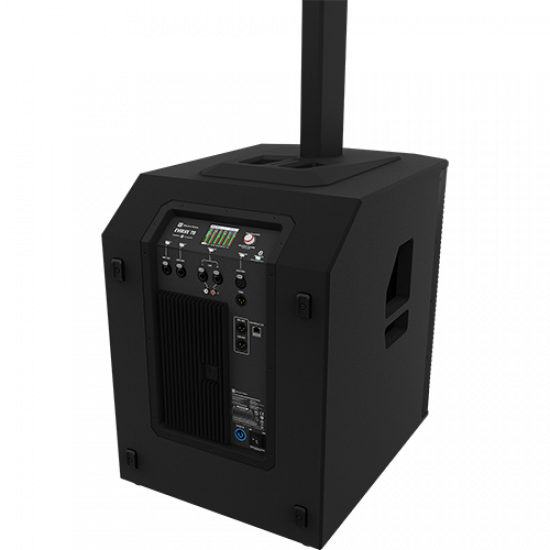

• Connector Type:
powerCON® Power Input
Dual XLR/TRS Combo Jack Mic / Line Inputs with Switchable 48V Phantom Power
Stereo XLR/TRS Combo Jack Line Input
Stereo RCA Line Input
XLR AES/EBU Input
XLR AES/EBU Thru
XLR Mix Out
XLR Sub Out
RJ45 QuickSmart Link Connector
Bluetooth Stereo Input with TWS
• Enclosure: Plywood with Polyurea Coating (Subwoofer) / Composite (Column) / Aluminum (Pole)
• Grille Material: Steel with Black Powder Coat
• Color Black
• Assembled Dimensions, (H x W x D): 2259 mm x 450 mm x 607 mm
• Weight: 35.5 kg
