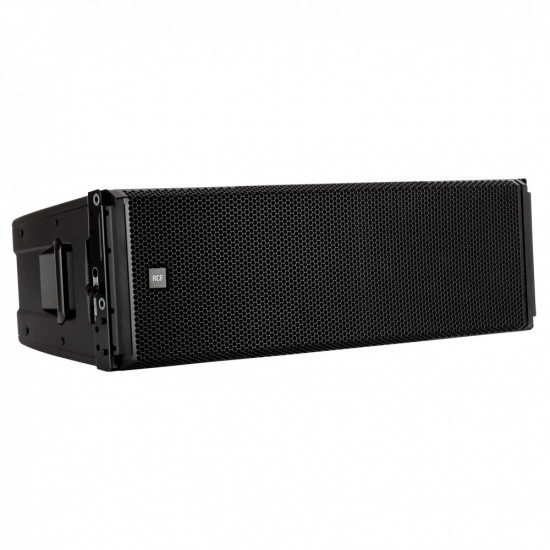

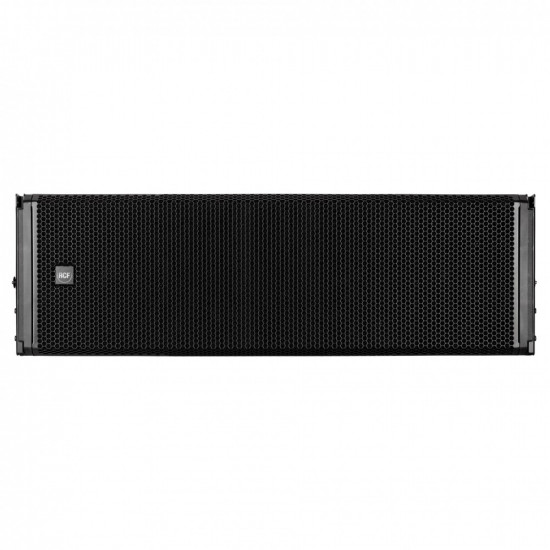

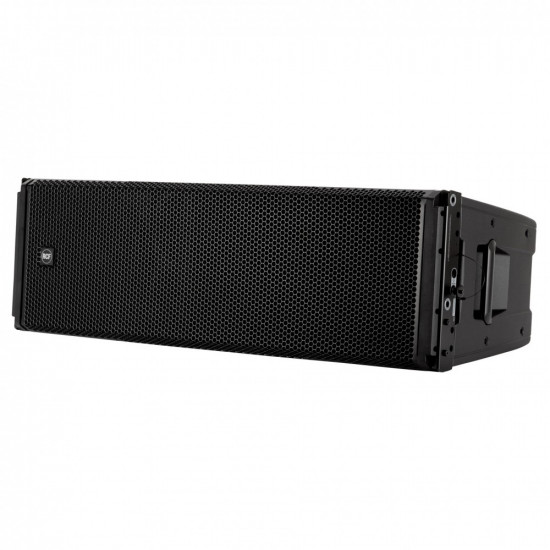

RCF HDL 50-A 4K

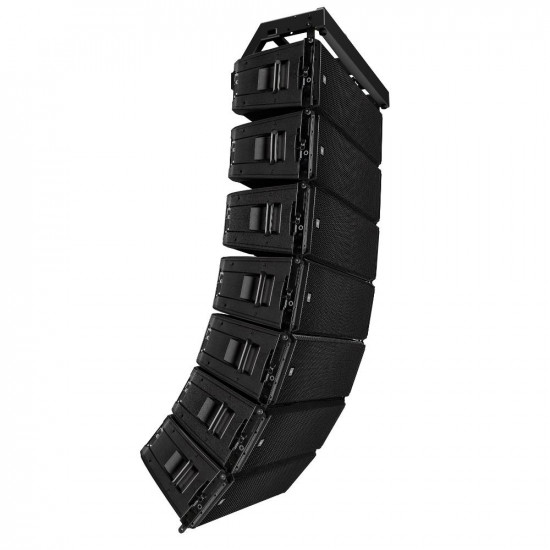

HDL 50-A 4K Активна трилентова тонколона за Line Array

HDL 50-A 4K е активна тонколона с висока мощност (4000 W RMS), подходяща за използване в професионални системи за големи събития, на закрито и на открито.

• 8000 Watt power, 4 x onboard amplifiers
• 143 dB max SPL
• RDNet networked management and monitoring
• 48 kHz, 32 bit DSP processing
• 2 x 12” neodymium woofers
• 4 x 6" neodymium woofer midrange
• 2 x 3” titanium dome neodymium compression drivers
• Remarkably compact and lightweight


Specifications

Acoustical specifications

• Frequency Response: 40 Hz ÷ 20000 Hz
• Max SPL @ 1m: 143 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 10°

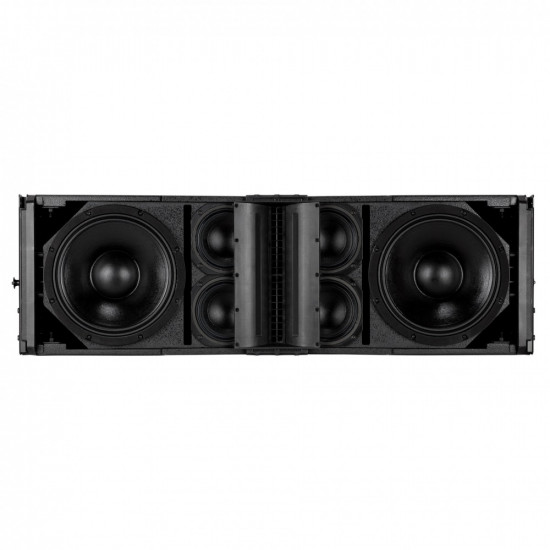

Transducers

• Compression Driver: 2 x 1.4'' neo, 3.0'' v.c
• Midrange: 4 x 6.0'' neo, 2.0'' v.c
• Woofer: 2 x 12'' neo, 3.0'' v.c

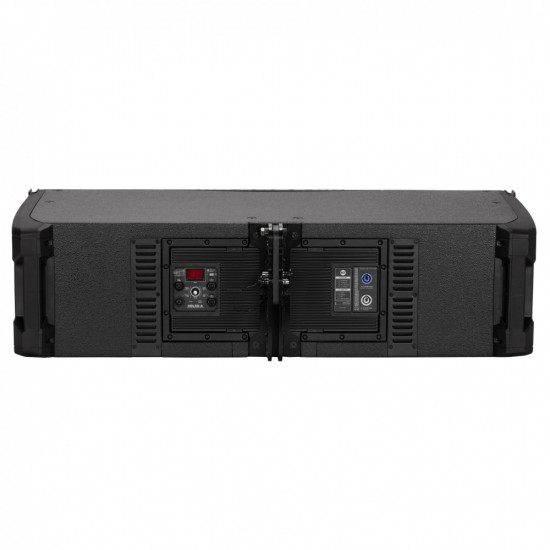

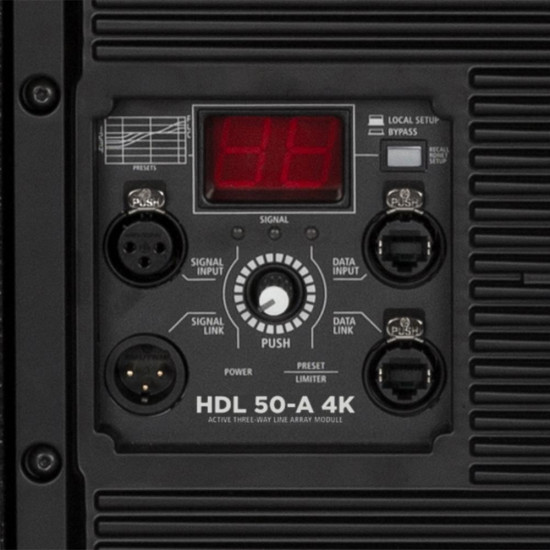

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: +4 dBu

Processor section

• Crossover Frequencies: 200 Hz - 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Cluster size, HF correction, RDNET
• RDNet: Yes

Power section

• Total Power: 8000 W Peak
• High frequencies: 2000 W Peak
• Mid frequencies: 2000 W Peak
• Low frequencies: 4000 W Peak
• Cooling: Convection
• Connections: Powercon IN/OUT

Standard compliance

• Safety agency: CE compliant

Physical specifications

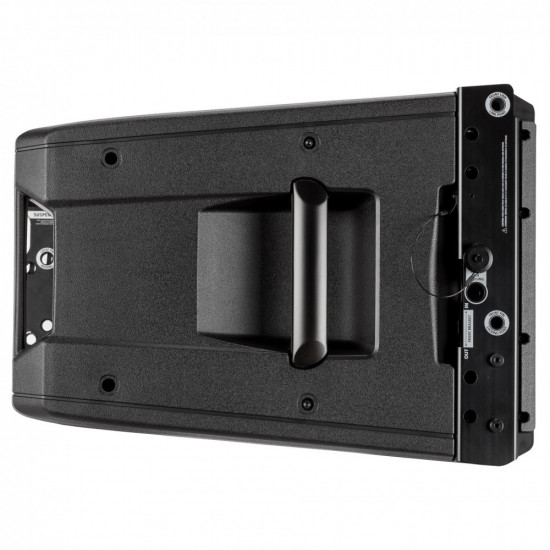

• Cabinet/Case Material: Baltic birch plywood

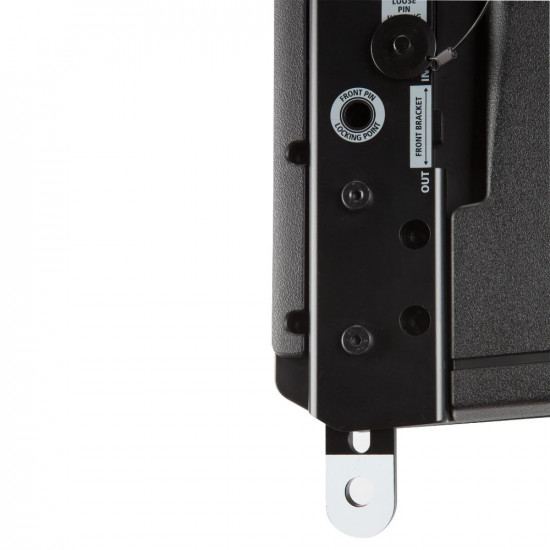

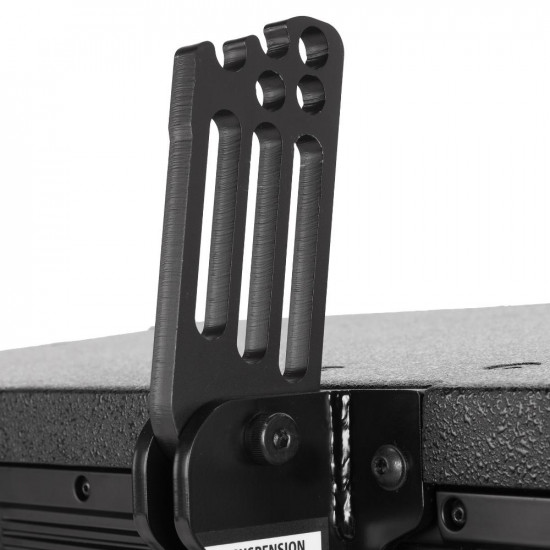

• Hardware: Integrated Mechanics
• Handles: 2 side, 2 rear
• Grille: Steel
• Colour: Black

Size

• Height: 366 mm / 14.41 inches
• Width: 1171 mm / 46.1 inches
• Depth: 502 mm / 19.76 inches
• Weight: 58.4 kg / 128.75 lbs

Shipping information

• Package Height: 400 mm / 15.75 inches
• Package Width: 1200 mm / 47.24 inches
• Package Depth: 600 mm / 23.62 inches
• Package Weight: 62.4 kg / 137.57 lbs
