RCF EVOX 12 Активна двулентова система, бяла

RCF EVOX 12 Активна двулентова система, бяла

• 1400 Watt
• 130 dB max SPL
• 40 Hz 20 kHz frequency response
• 15" Woofer
• 8 x 4" neodymium full-range woofer
• 90° x 30° slightly tilted pattern control
• Innovative DSP processing

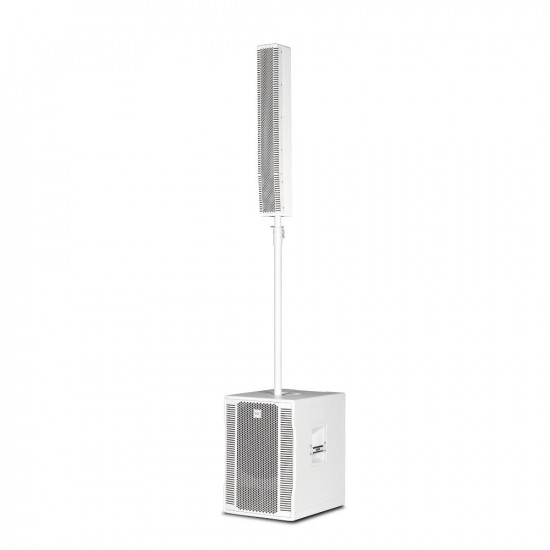

• Pole mountable, easy set-up and transportation

Specifications

Acoustical specifications

• Frequency Response: 40 Hz ÷ 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 30°

Transducers

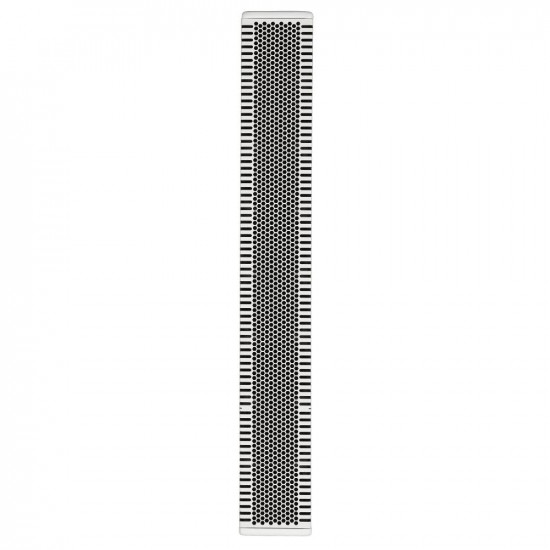

• Fullrange: 8 x 4.0'', 1.0'' v.c

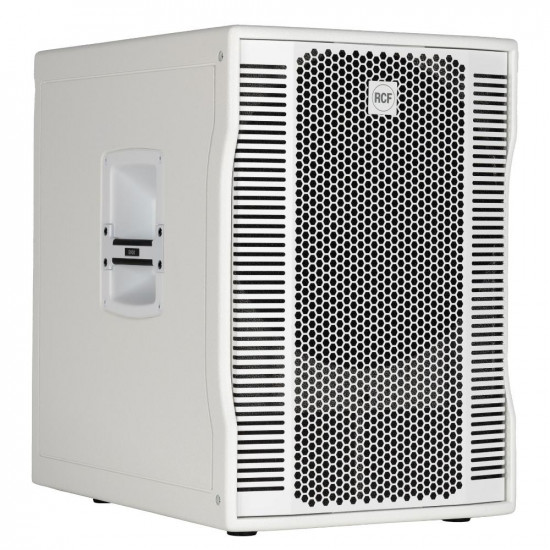

• Woofer: 15'', 3.0'' v.c

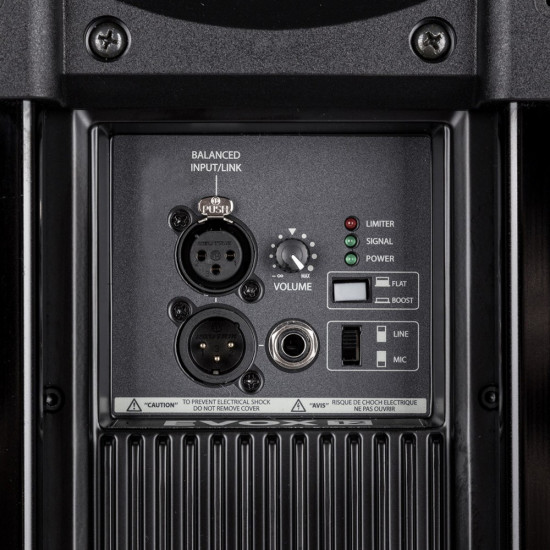

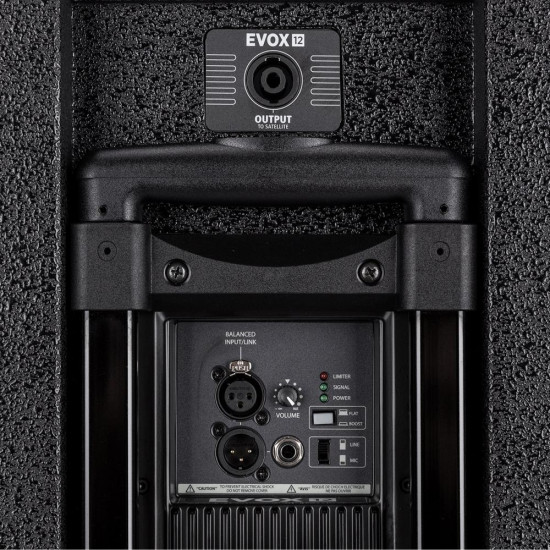

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, Jack

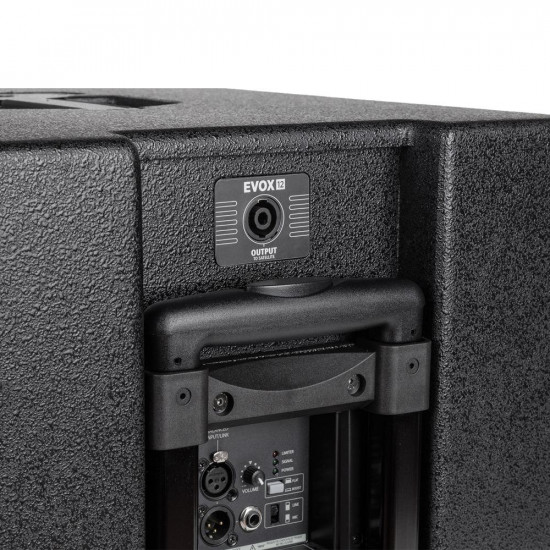

• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor section

• Crossover Frequencies: 180 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, EQ

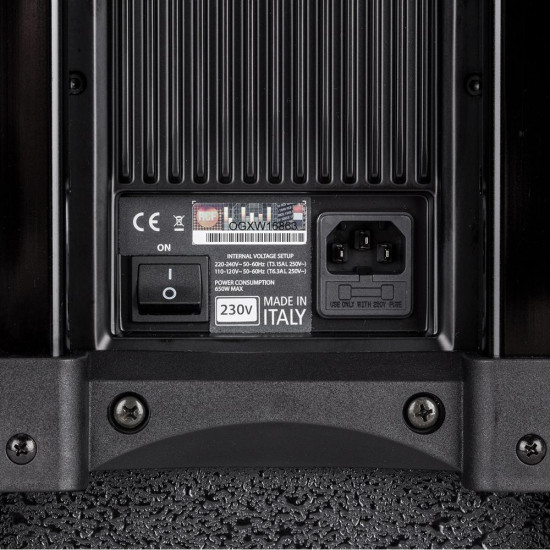

Power section

• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: VDE

Standard compliance

• Safety agency: CE compliant

Physical specifications

• Cabinet/Case Material: Baltic birch plywood
• Colour: White - RAL 9003

Size

• Height: 2200 mm / 86.61 inches
• Width: 410 mm / 16.14 inches
• Depth: 560 mm / 22.05 inches
• Weight: 36.4 kg / 80.25 lbs

Shipping information

• Package Height: 636 mm / 25.04 inches
• Package Width: 459 mm / 18.07 inches
• Package Depth: 613 mm / 24.13 inches
• Package Weight: 43.89 kg / 96.76 lbs
