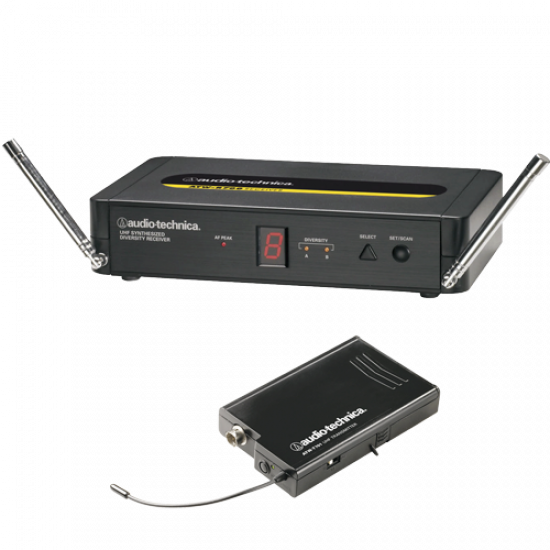

Audio-Technica ATW-701F

Audio-Technica’s 700 Series wireless delivers professional features and sound quality unheard of in its class. These easy-to-use wireless systems feature eight selectable frequency-coordinated channels, diversity operation for increased range/reliability, automatic frequency scanning,

• 8 selectable frequency-coordinated UHF channels
• Use up to 8 simultaneous systems—all channels compatible
• Automatic frequency scanning
• Diversity operation for increased range/reliability
• LED Channel display plus Antenna, AF Peak indicators
• Balanced XLR and unbalanced ?” output connectors
• Tone Lock™ squelch system eliminates interference when transmitter is off
• UniPak® transmitter features: separate guitar/mic trim control, switchable high/low RF power, internal channel selector, multi-color battery/power indicator, AA operation

700 body-pack systems are compatible with all Audio-Technica Wireless Essentials® microphones and cables

Receiver Specifications

• Receiving System: Antenna-switching diversity
• Image Rejection: 55 dB minimum
• Signal-to-noise Ratio: >80 dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz
• Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
• Sensitivity: 25 dBµV (S/N 60 dB at 10 kHz deviation, IEC-weighted)
• Audio Output: Unbalanced: 211 mV (-13.5 dBV) (1 kHz modulation, 10 kHz deviation)
• Balanced: 150 mV (-16.5 dBV) (1 kHz modulation, 10 kHz deviation)
• Output Connectors: Unbalanced: 1/4" TS ("mono") phone jack

Body-Pack Transmitter Specifications

• RF Power Output High: 10 mW; Low: 5 mW
• Spurious Emissions: According to R&TTE Directive
• Dynamic Range: >100 dB, A-weighted
• Input Connections: High impedance, low impedance, bias
• Batteries: Two 1.5V AA alkaline (not included)
• Current Consumption: High: 140 mA; Low: 130 mA, typical
• Battery Life: Approximately 8 hours (High); 10 hours (Low), depending on battery type and use pattern
• Balanced: XLRM-type
