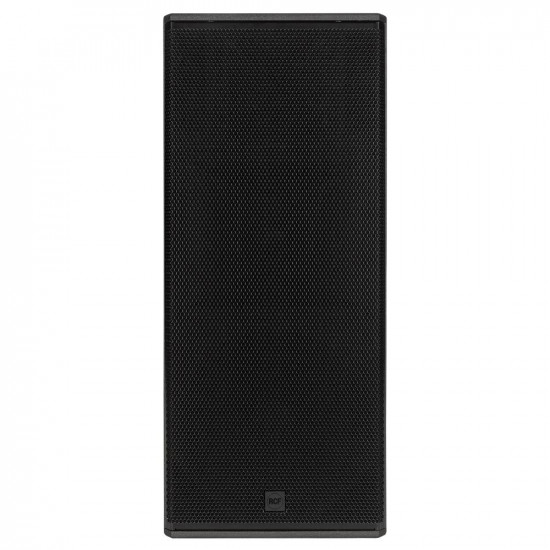

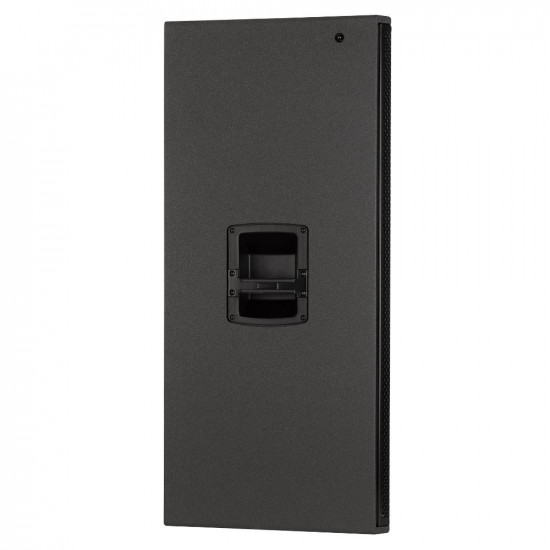

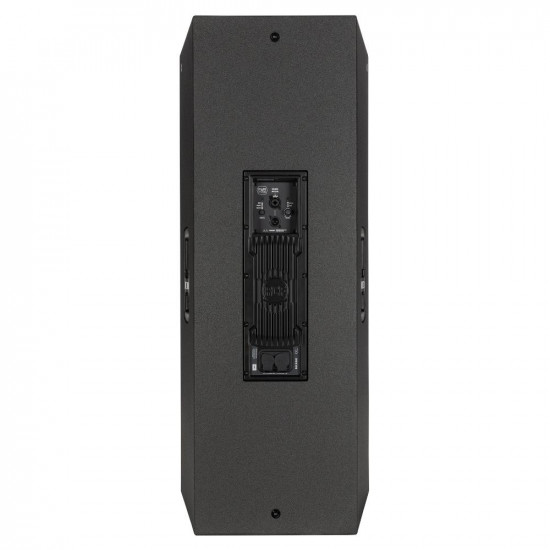

Активна трилентова тонколона 15" RCF NX 985-A

RCF NX 985-A Активна трилентова тонколона 15" - 2100 W пикова мощност

NX 985-A is a three-way active speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of RCF premium transducers and a two-channel 2100W amplifier produce coherent 100° x 60° coverage for the listening area with up to 138 dB SPL of distortion-free sound. The three-way design features a 1.75" neodymium compression driver with a constant directivity waveguide, 8" cone midrange on a phase-coherent waveguide, and a 15" high power woofer. Used as a stand-alone speaker, flown, coupled with another NX 985-A or combined with the RCF SUB 8008-AS subwoofer, the NX 985-A delivers extreme SPL output at all frequencies with high performance and reliability. The rugged, tour-ready, high-quality all-plywood cabinet is easy to carry and secure to install using the dedicated rigging points available.

Features:

• Up to 138 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 40-20000 Hz linear frequency response
• 1.75" Neodymium Compression Driver with Peek diaphragm
• 8" Midrange, 2.5" v.c.
• 15" High Power Woofer
• Bass Motion Control and FiRPHASE processing
• M10 Rigging Points
• IP Rated Powercon TRUE1 TOP IN/OUT

Specification:

Acoustical specification:

• Frequency Response: 40 Hz ÷ 20000 Hz
• Max SPL @ 1m: 138 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 60°

Transducers:

• Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
• Midrange: 8'' neo, 2.5'' v.c
• Woofer: 15'', 3.0'' v.c

Input/Output Section:

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section:

• Crossover Frequencies: Bass/Mid:320Hz, Mid/High:1200Hz
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Linear, 2 Speakers, High Pass, Volume

Power Section:

• Total Power: 2100 W Peak
• High frequencies: 200 W Peak
• Mid frequencies: 500 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

Standard Compliance:

• CE compliance: Yes

Physical Specifications:

• Cabinet/Case Material: Plywood
• Hardware: 3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear
• Handles: 1 x Side
• Grille: Steel
• Color: Black

Size:

• Height: 1075 mm / 42.32 inches
• Width: 461 mm / 18.15 inches
• Depth: 475 mm / 18.7 inches
• Weight: 45 kg / 99.21 lbs

Shipping Information:

• Package Height: 530 mm / 20.87 inches
• Package Width: 1110 mm / 43.7 inches
• Package Depth: 490 mm / 19.29 inches
• Package Weight: 51 kg / 112.44 lbs
