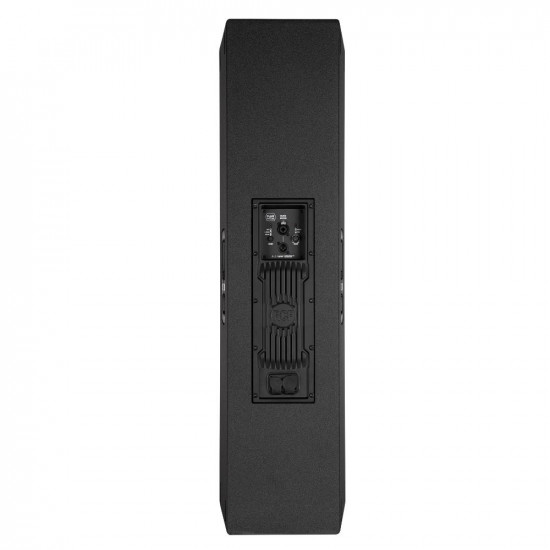

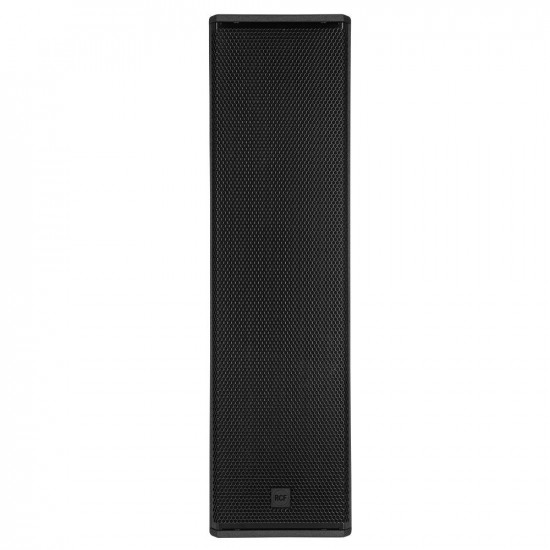

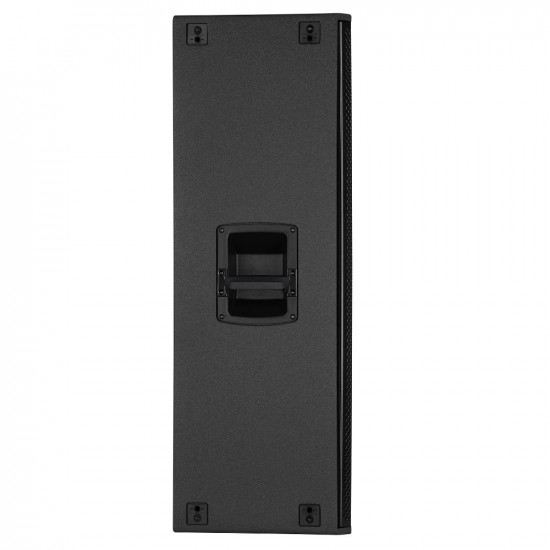

Активна трилентова тонколона RCF NXW 44-A

RCF NXW 44-A Активна трилентова тонколона

Features:

• Up to 135 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 50° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver
• 3 x 10" High Power Neodymium Woofers
• 45-20000 Hz linear Frequency Response
• Bass Motion Control and FiRPHASE processing
• 8 x M8 Rigging Points and 8 x Quick Lock
• IP Rated Powercon TRUE1 TOP IN/OUT

Specification:

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 135 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 50°

TRANSDUCERS

• Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
• Woofer: 3 x 10'' neo, 2.5'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 800
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Linear, Boost, High-Pass presets, Volume

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Hardware: 8 x M8, 8 x quick lock
• Handles: 2 side
• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 1080 mm / 42.52 inches
• Width: 297.5 mm / 11.71 inches
• Depth: 373 mm / 14.69 inches
• Weight: 31.55 kg / 69.56 lbs

SHIPPING INFORMATION

• Package Height: 400 mm / 15.75 inches
• Package Width: 1115 mm / 43.9 inches
• Package Depth: 327 mm / 12.87 inches
• Package Weight: 33.65 kg / 74.19 lbs
