Пар CHAUVET DJ COREpar Q60 ILS

​COREpar Q60 ILS

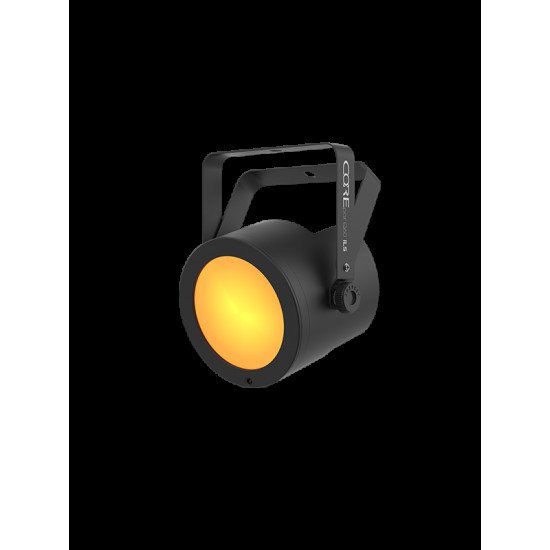

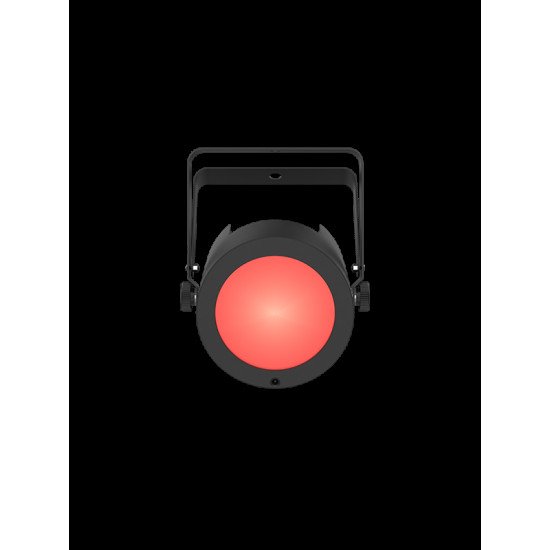

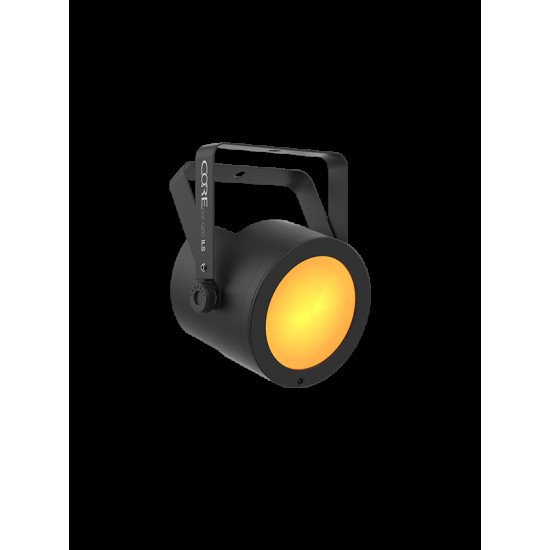

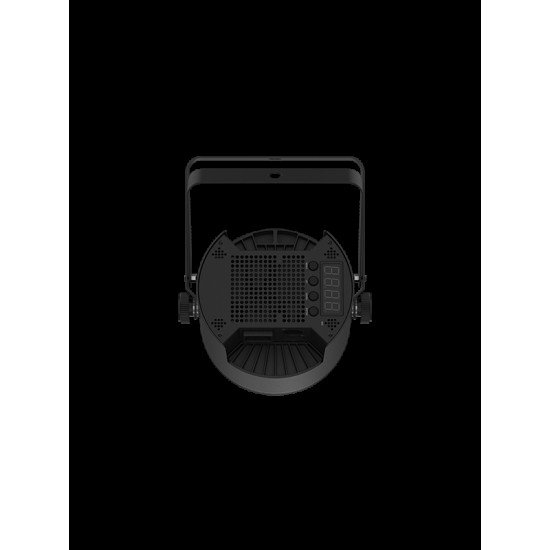

COREpar Q60 ILS is a 60-watt quad-color (RGBW) COB (Chip-on-Board) LED that produces a full spectrum of light with unsurpassed color mixing. Its robust housing withstands the harshness of traveling from gig to gig and its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. Among the powerful features of the COREpar Q60 is ILS compatibility for use in the Integrated Lighting System (ILS) ecosystem that makes creating coordinated light shows across different fixture types easy. D-Fi USB compatibility is also board for wireless Master/Slave or DMX control. Achieve flicker-free video operation with high-frequency LED dimming and the included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds. Create customized colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves.


Specifications

DMX Channels:4 or 9
DMX Connectors:3-pin XLR
Light Source:1 COB LED (quad-color RGBW) 60 W, (2.8 A), 50,000 hours life expectancy.
Strobe Rate:0 to 29 hz
Beam Angle:
(without lens): 74°
(with lens): 20°
Field Angle:
(without lens): 100°
(with Lenes): 30°
Illuminance:
(without lens) : 320 lux @ 2 m
(with lens) : 2,796 lux @ 2 m
Power Linking:9 units @ 120 V; 17 units @ 230 V
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
59 W, 0.8 A @ 120 V, 60 Hz
57 W, 0.5 A @ 230 V, 50 Hz
Weight:3.4 lbs. (1.5 kg)
Size:7.5 x 7.5 x 8.2 in (192 x 192 x 210 mm)
Approvals:CE, RoHS, UKCA
Cable Length: 5ft (1.5 m)
Bracket Mounting Hole: 13 mm
Optional Controllers: IRC6, D-Fi USB
