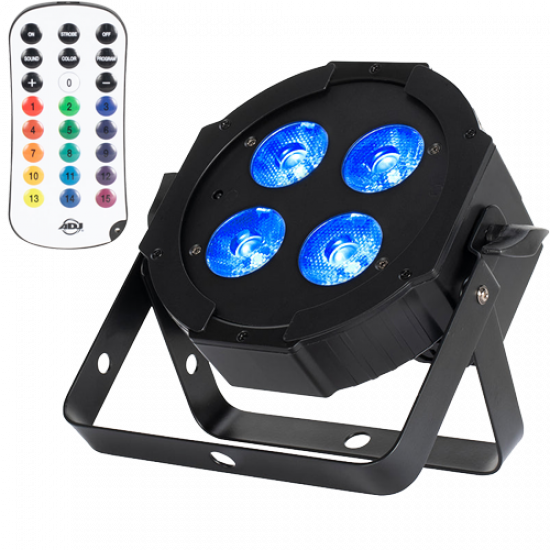

ADJ MEGA HEX L PAR

MEGA HEX L PAR

Compact LED Par with 4 x 20-Watt, 6-IN-1
(RGBLA + UV) LEDs and a “sit-flat” design.
It includes the UC IR24 wireless IR remote
control. The addition of the Lime LED chip
creates a high CRI output and allows users
to control the white color temperature of
this fixture.

LIGHT SOURCE:
• 4 x 20-Watt, 6-IN-1 Hex (RGBLA+UV) LEDs (50,000 hrs.)
• CRI: >90
• Lumens: 1100
• Beam Angle: 17-degrees (native); 20-degree (with frost filter)

EFFECTS:
• White Color Temperature Control (2300K – 9900K)
• 15 White Color Temperature Presets
• 63 built-in Color Macros
• 13 built-in programs
• Flicker Free
• Electronic Dimming: 0-100%
• 6 Dimmer Curve Modes
• Color strobe effect

CONTROL:
• 7 DMX Channel modes: 6, 8, 9, 12, 14, 15 and 17 channel modes
• 5 Operational modes: Auto Run Mode (16 Color Change Mode, 16
Color Fade Modes, & 1 Combined Mode), Sound Active Mode (16
Modes), RGBLA + UV Dimmer Mode, Static Color Mode (63 Colors),
and DMX Controlled

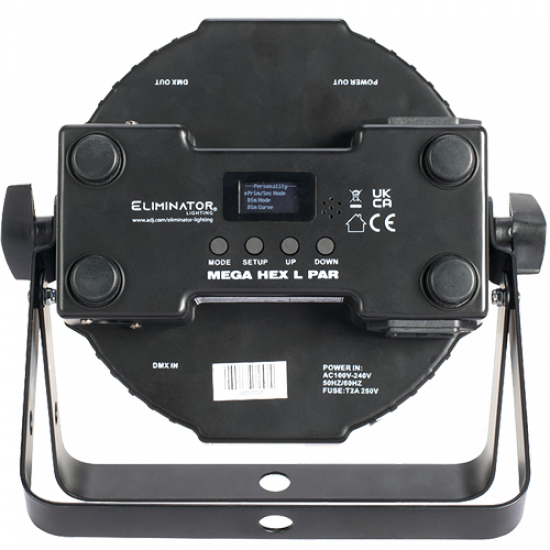

• 4-button with OLED display menu for easy navigation
• Stand Alone or Primary/Secondary Configuration
• DMX-512 protocol

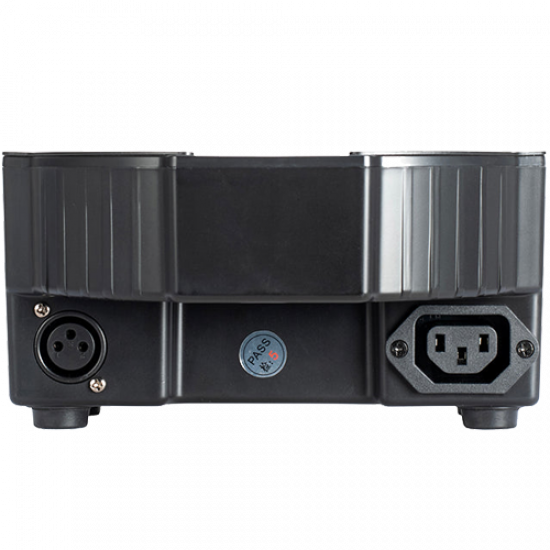

CONNECTIONS:
• 3-pin DMX Inputs/Outputs
• IEC AC input and output on the side of the fixture to daisy chain
the power (link up to 20 fixtures @120V, up to 40 fixtures @230V)
• With Wired Digital Communication Network

ELECTRICAL:
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 24W Max

DIMENSIONS/WEIGHT:
• Dimensions (LxWxH): 10.25”x 10.25”x 4.25”/ 261x260x110mm
• Weight: 4 lbs./ 1.87 kg.

WHAT’S INCLUDED:
• Includes the ADJ UC IR24 wireless IR remote
• IEC Power Cord
• 20-degree Frost Filter
• Safety cable
• Scissor yoke
