TITAN 15Z
700 wattsAES (RMS)- 15″ passive
- 2.0″ HF compression driver
- 4.0″ LF voice coil
- 700 watts AES (RMS)
- 1400 watts Programme
- 2800 watts Peak
- 133 dB Max SPL @ 1 meter
- IP54 Certified
Lets look inside
Titan loudspeakers pride themselves on custom Wharfedale Pro drivers. The IRIS-X HF compression driver used in Titan-X12, Titan-12Z and Titan-X15 feature a 1.75″ voice coil and is unique at this price point.
IRIS-X
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
Increased Radius Increased Sensitivity
IP54 Certified
IP54 certification assures that the product has
- Limited protection against dust ingress.
- Protection against splash water from any direction.
All of this means that you can have full confidence installing a Titan in extreme conditions.
SPECIFICATIONS
Model Name |
Titan-15Z |
|---|---|
System Type |
Passive |
Configuration |
15″ 2-way |
Frequency Response (+/-3 dB) |
45 Hz-20 KHz |
Frequency Range (-10 dB) |
40 Hz-20 KHz |
Sensitivity (2.83 v / 1 m) |
99 dB |
Calculated Maximum SPL @1 m |
133.5 dB |
System Rated Impedance |
8 Ω |
Low Frequency Transducer |
|
Size |
381 mm / 15″ |
Voice Coil Size |
100 mm / 4.0″ |
Rated Impedance |
8 Ω |
LF Power (re:AES2-2012) |
700 w |
High Frequency Transducer |
|
HF Driver Type |
Compression Driver |
Voice Coil Size |
50 mm / 2.0” |
Exit Size |
25 mm / 1″ |
Diaphragm Material |
Titanium |
Rated Impedance |
8 Ω |
HF Power (re:AES2-2012) |
50 w |
Nominal Coverage (H x V) |
Hybrid Symmetry Horn 100°x80° |
Power |
|
System Power AES (RMS) |
700 w |
System Programme Power |
1400 w |
System Peak Power |
2800 w |
Crossover frequency |
2.1 KHz |

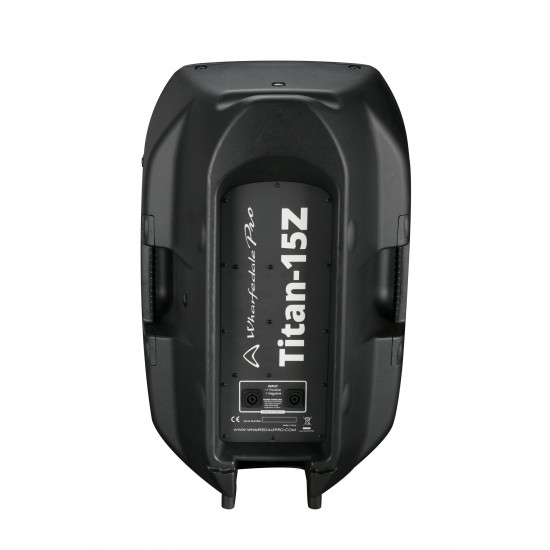

Input Connector |
2 x NL4 (speakON compatible) |
Hardware |
|
Pole Mount |
35 mm with lock screw |
Handles |
2 on sides |
Mounting points |
M8 * 10 |
Enclosure |
|
Enclosure Material |
Trapezoidal / Polypropylene |
Finish |
Black / white |
Grille Material & Finish |
1.2 steel |
Dimensions – Unpacked |
|
Height |
728.5 mm / 28.7” |
Width Front |
480.6 mm / 18.9” |
Width Rear |
480.6 mm / 18.9” |
Depth |
395.6 mm / 15.6” |
Dimensions – Packed |
|
Height |
830 mm / 32.7″ |
Width Front |
514 mm / 20.2″ |
Width Rear |
514 mm / 20.2″ |
Depth |
489 mm / 19.3″ |
Weight |
|
Net Weight (kg / lbs) |
25.8 kg / 56.8 lbs |
Gross Weight (kg / lbs) |
30.6 kg / 67.3 lbs |
