Контролер за стена DYNACORD WPN1

Networked Wall Panel Controller


The WPN1 wall panel controller provides simplified operation and control within the SONICUE Sound System Software ecosystem. System-wide parameters can be controlled via a network connection to an MXE5 Matrix Mix Engine (or another SONICUE Control

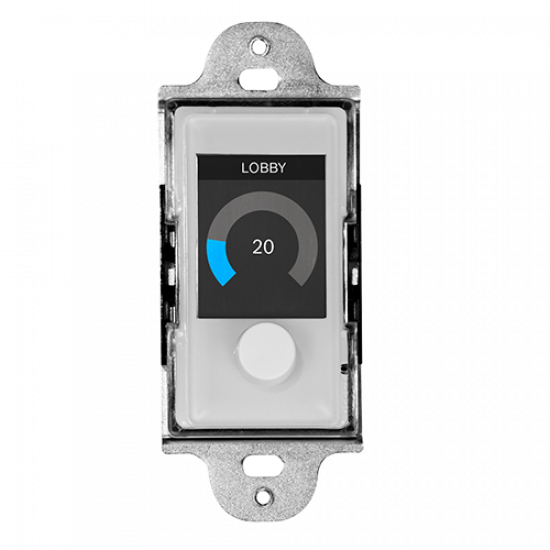

Server). The unit has a 1.77-inch color TFT display and is operated via a rotary encoder. Flexible configuration in SONICUE allows the user interface to be designed with a very high level of customer- or project-specific detail, from a simple zone-volume control to multi-zone control, or even control of external devices via the MXE5’s logic engine.

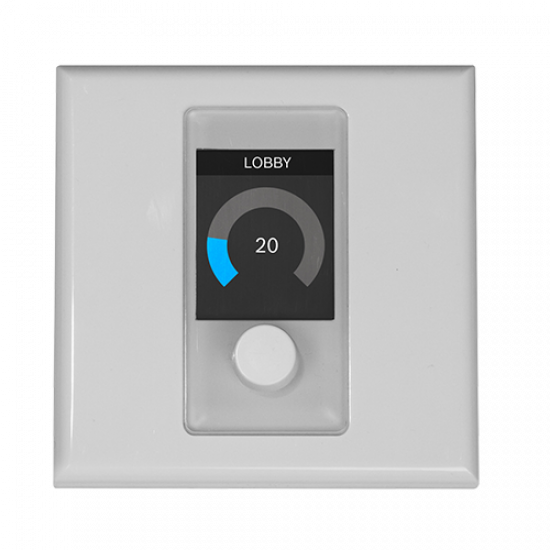

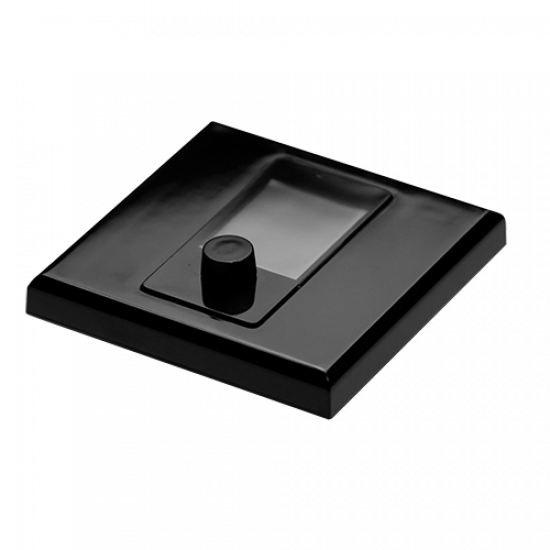

The WPN1 ships with a white front and can be easily changed to a black front with the parts supplied. It mounts conveniently in a standard EU-type wall-mount box and is powered via PoE (Power over Ethernet).

Technical Specifications:

• Display Type: Color TFT
• Display Size: 1.77 in
• Display Resolution: 160 x 128 Pixels
• Brightness: 480 cd/m2
• Network Ethernet: 100BASE-TX, 1000BASE-T
• PoE Input: PoE IEEE 802.3af
• PoE Nominal Voltage: 48 VDC
• Mounting Type: Wall-Mounted
• Required Box Size: 62 mm Diameter, >/=60 mm Deep
• Software Compatibility: SONICUE (>/=1.2.4)
• SONICUE Control Server: MXE51
• Color: White, Changeable to Black
• Power Consumption: </= 1.30 W
• Operating Temperature: 0 °C – 45 °C
• Operating Relative Humidity, Non-Condensing: 15% – 93%
• Dimensions (H x W x D), (mm): 286.3 x 86.3 x 47.30
• Weight: 93 g
