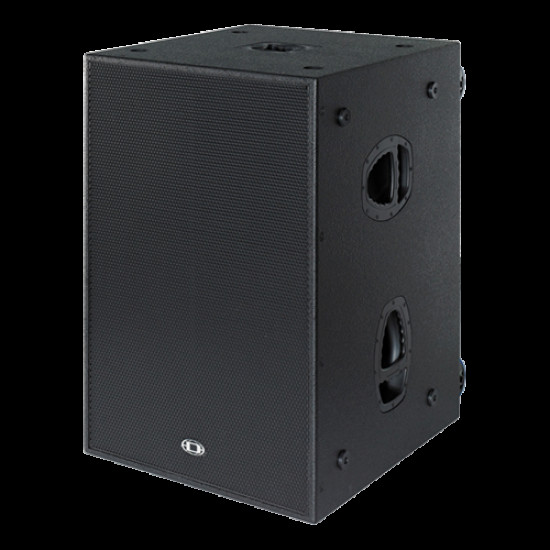

DYNACORD FX20-PRO

​FX20-PRO • 1x 18" Planar Waveguide Basshorn • 1200 W / 600 W • 8 Ohms • Painted


The Dynacord FX20-PRO is a Planar Waveguide Basshorn, equipped with the high-power Electro-Voice EVX 180B 18" transducer.

Technical Specifications:

• Description: Passive Subwoofer, Planar Waveguide Bass Horn
• Nominal Impedance: 8 Ohms
• Rated Power RMS: 600 W
• Program Power: 1200 W
• Peak Power: 2400 W
• SPL 1 W/1 m: 101 dB
• Maximum SPL (1 Meter): 135 dB
• Frequency Range (-10 dB), Measured with Xa 4000: 30 - 150 Hz
• Recommended Active Crossover Frequency: 140 Hz, 18 dB/oct. Butterworth
• Voice Coil Tracking Protection: Yes
• Transducer: EVX 180B
• Audio Sockets: 2x NEUTRIK speakON NL4MPR
• Enclosure Material: Birch Plywood, 15 mm
• Enclosure Finish: Heavy-Duty Structured Lacquer
• Color: Black (RAL 9005, Jet Black)
• Grille: Powder Coated Steel
• Handles: 6
• Castors: 4
• Product Dimensions (W x H x D), mm: 610 x 905 x 814
• Net Weight: 54.3 kg
