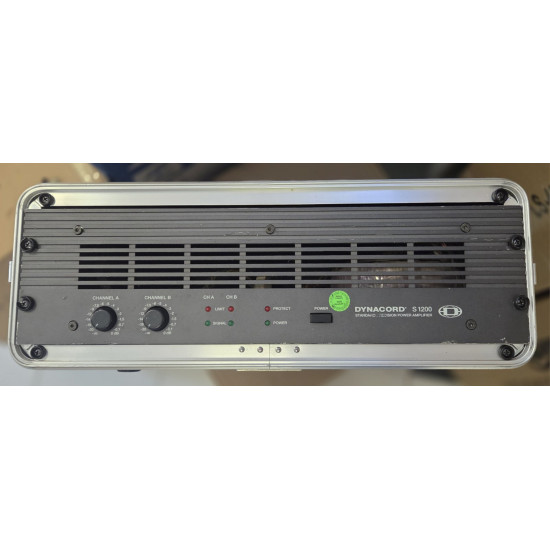

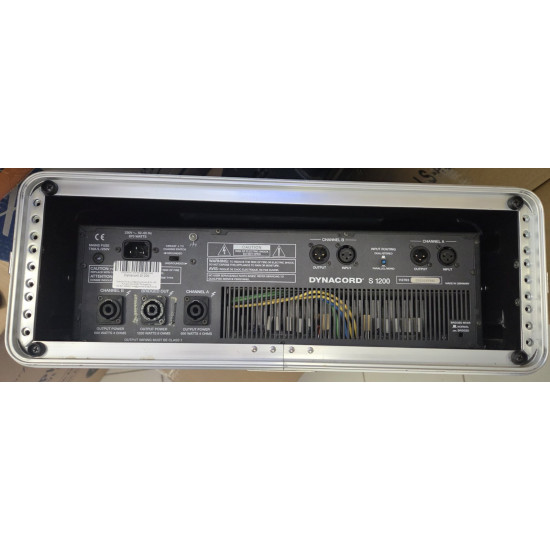

Dynacord S1200

ower amplifier Dynacord S1200

• Power amplifier
• Load impedance: 8, 4, 2 ohms
• power max. midband output: 8 ohms: 380 W 1 kHz, THD=1%
• power max. midband output: 4 ohms: 600 W 1 kHz, THD=1%
• power max. midband output: 2 ohms: 850 W 1 kHz, THD=1%
• Rated output power: 8 ohms: 300 W 20 Hz - 20 kHz, THD<0.2%
• Rated output power: 4 ohms: 500 W 20 Hz - 20 kHz, THD<0.2%
• Rated output power: 2 ohms: 650 W 20 Hz - 20 kHz, THD<0.2%
• power max. single-channel output: 8 ohms: 460 W Dynamic-Headroom, IHF-A
• power max. single-channel output: 4 ohms: 880 W Dynamic-Headroom, IHF-A
• power max. single-channel output: 2 ohms: 950 W Dynamic-Headroom, IHF-A
• power max. bridged output: 8 ohms: 1200 W THD=1%, 1kHz
• power max. bridged output: 4 ohms: 1700 W THD=1%, 1kHz
• Maximum RMS voltage variation: 64 V (1 kHz, THD=1%)
• Voltage gain: 35 dB (at 1 kHz)
• Spin rate: 30 V/µS
• Power consumption: 870 W at 1/8 maximum output power into 4 ohms
• Input Sensitivity: 0dBu (775mV) (at rated output power @ 4 ohms, 1 kHz)
• THD at rated output power: < 0.05 % (MBW=80kHz, 1 kHz)
• IMD-SMPTE: < 0.08 % (60 Hz, 7 kHz)
• DIM 30 : < 0.03 % (3.15 kHz, 15 kHz)
• Crosstalk: <-80 dB ref. 1 kHz, at rated output power
• Frequency response: 13 Hz - 45 kHz (-1dB, ref. 1 kHz)
• Power bandwidth: 10 Hz - 50 kHz (THD=1%, ref. 1 kHz, half power at 4 ohms)
• Input impedance: 20 kohms (20Hz - 20kHz, balanced)
• Damping factor: >300 / >200 (at 100 Hz / 1 kHz)
• Signal-to-noise ratio: 103 dB (A-weighted)
• Power supply: 230 V, 50 Hz - 60 Hz
• Dimensions: 483 x 132.5 x 385.5
• Weight: 16 kg
