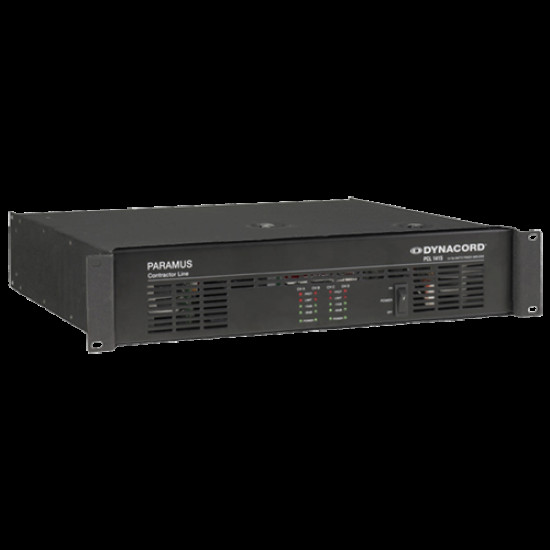

DYNACORD PCL 1415

​PCL 1415 • 4-Channel Power Amplifier • 4 x 150 Watts


The DYNACORD PCL-Series power amp line combines outstanding audio performance, exceptional reliability and secure operational safety in a compact 2RU chassis design. All models in the PCL-Series provide several protection circuits which not only prevent the power amplifier itself but also the connected loudspeaker systems from being damaged.

Features:

• Load Impedance: 8 / 4 Ohms
• Maximum Midband Output Power, THD=1%, 1 kHz: 100 W / 160 W
• Rated Output Power, THD < 0.2%, 20 Hz - 20 kHz: 75 W / 150 W
• Maximum Bridged Output Power, THD=1%, 1 kHz: 315 W / -
• Maximum RMS Voltage Swing, THD=1%, 1 kHz: 32.1 V
• Voltage Gain at 1 kHz: 30dB
• Slew Rate at 1 kHz: 16V/micros
• Power Consumption at 1/8 Maximum Power: - / 385 W
• Input Sensitivity: 0dBu
• THD at Rated Output Power: <0.1 %
• Crosstalk, ref. 1 kHz: < -75dB
• Frequency Response: <10 Hz - 40 kHz
• Power Bandwidth: < 10 Hz - > 50 kHz
• Input Impedance: > 20 kOhms
• Damping Factor: > 250
• Signal to Noise Ratio, A-Weighted: 101dB
• Dimensions (W x H x D), mm: 483 x 88 x 405 (2RU)
• Weght: 18.0 kg
