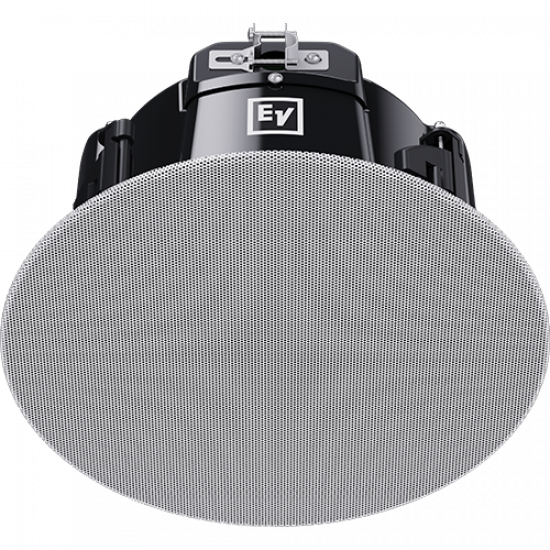

Говорител за вграждане Electro-Voice EVID-C6.2-G2

2-Way Ceiling Speaker 6.5" 70/100V • Bezel-Less Design with Magnetic Grille • White


The Electro-Voice EVID-C6.2-G2 is a complete 6.5-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the SwiftLock mounting system for quick and easy installations that are fast and reliable without compromising on safety.

Features:

• SwiftLock Mounting System for Quick, Safe, and Reliable Installation
• Bezel-Less Design with Easy-Attach Magnetic Grille
• Front Baffle Wattage Tap Adjustment
• Includes Tile Rail and C-Ring for Easy Installation
• UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368-1 Certified

Technical Specifications:

• Frequency Range (-10 dB): 65 Hz – 20000 Hz
• Maximum SPL (Peak): 115 dB
• Sensitivity: 90 dB SPL 1 W@1 m
• Coverage Angle Conical: 110°
• Power Handling (Continuous / Peak / Long Term): 80 W / 320 W
• Nominal Impedance (Low Z): 8 Ohms
• Recommended High Pass: 60 Hz
• Transformer Taps 100 V (70 V) Line: 30 W; 15 W; 7.5 W; 3.75 W; (1.88 W)
• LF Transducer Size: 6 in
• HF Transducer Size: 1 in
• Material: Steel
• Grille Material: Powder Coated Steel
• Connector Type 4-pin Euroblock / Input + Pass Through
• Wire Size: 12AWG (Maximum)
• Wire Diameter: 3.3 mm2 (Maximum)
• Mounting Cutout: 272 mm
• Dimensions (Diam x D): 302 mm x 153.8 mm
• Mounting Depth: 149 mm
• Ceiling Thickness: 12.5 mm - 38 mm
• Weight: 4.1 kg
• IP Rating: IP34
• Weatherization: Indoor
