Говорител за вграждане Electro-Voice EVID-C4.2-G2

2-Way Ceiling Speaker 4" 70/100V • Bezel-Less Design with Magnetic Grille • White

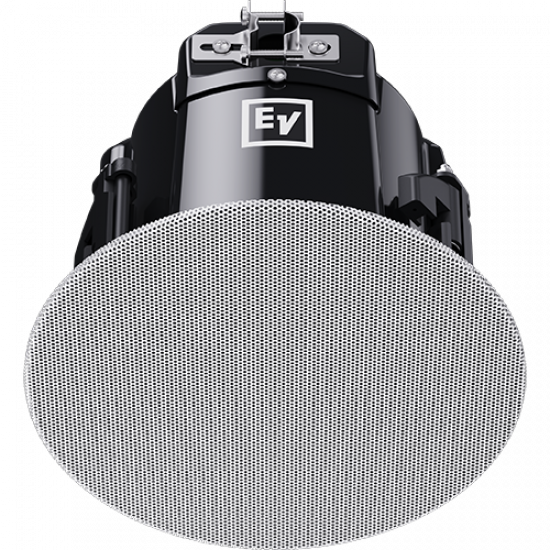

The Electro-Voice EVID-C4.2-G2 is a complete 4-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the SwiftLock mounting system for quick and easy installations that are fast and reliable without compromising on safety.

Features:

• SwiftLock Mounting System for Quick, Safe, and Reliable Installation
• Bezel-Less Design with Easy-Attach Magnetic Grille
• Front Baffle Wattage Tap Adjustment
• Includes Tile Rail and C-Ring for Easy Installation
• UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368-1 Certified

Technical Specifications:

• Frequency Range (-10 dB): 70 Hz – 20000 Hz
• Maximum SPL (Peak): 112 dB
• Sensitivity: 88 dB SPL 1 W@1 m
• Coverage Angle Conical: 130°
• Power Handling (Continuous / Peak / Long Term): 70 W / 280 W
• Nominal Impedance (Low Z): 8 Ohms
• Recommended High Pass: 70 Hz
• Transformer Taps 100 V (70 V) Line: 30 W; 15 W; 7.5 W; 3.75 W; (1.88 W)
• LF Transducer Size: 4 in
• HF Transducer Size: 0.75 in
• Material: Steel
• Grille Material: Powder Coated Steel
• Connector Type 4-pin Euroblock / Input + Pass Through
• Wire Size: 12AWG (Maximum)
• Wire Diameter: 3.3 mm2 (Maximum)
• Mounting Cutout: 183 mm
• Dimensions (Diam x D): 212 mm x 163.6 mm
• Mounting Depth: 158 mm
• Ceiling Thickness: 12.5 mm - 38 mm
• Weight: 2.7 kg
• Shipping Weight: 8.5 kg
• IP Rating: IP34
• Weatherization: Indoor
