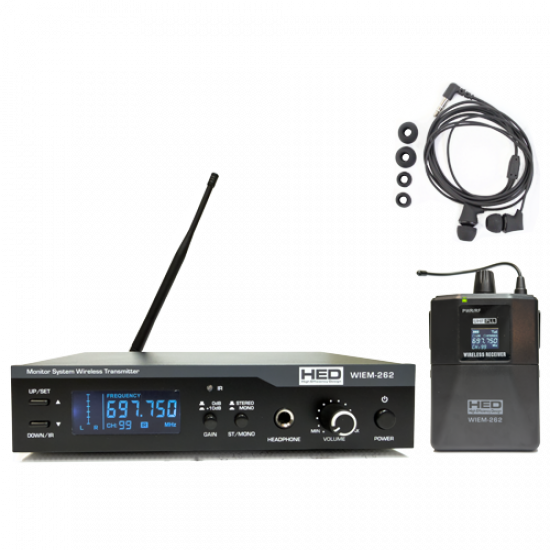

Мониторна система HED Audio WIEM-262 SET

UHF Wireless In ear Monitor system.

FEATURES:

• UHF Band Frequencies selectable in range 673.000-697.750MHz
• Frequency Agile with Phase-Lock Loop (PLL)
• Microcontroller (CPU) Controlled
• Mono Mode or Stereo Mode
• IntegratedAntennafor Effective RF Output and HighTransmission Quality
• Low-Battery Indicator on the Receiver
• One Audio Level Control Knob
• Rugged Transmitter Chassis
• 12"15V DC Power Supply
• Carying case

SPECIFICATIONS:

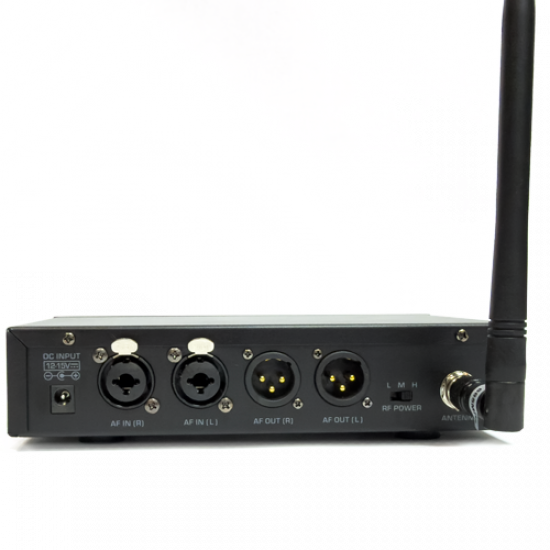

TRANSMITTER:

• FREQUENCY RANGE: 673.000-697.750MHz UHF Band, FM Stereo
• OSCILLATION MODE: PLL SYNTHESIZED
• FREQUENCY STABILITY: +/- 0.005%
• MAX. DEVIATION RANGE: 75KHz
• FREQUENCY RESPONSE: 50 -15000Hz

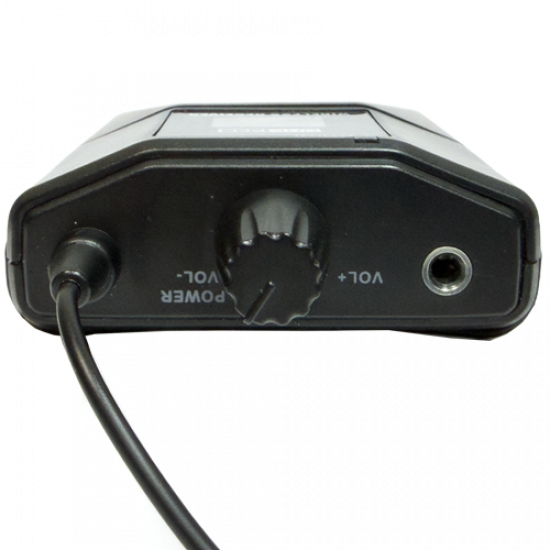

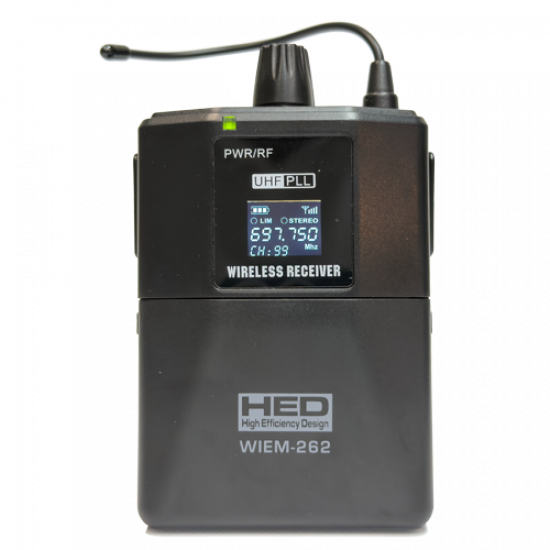

RECEIVER:

• FREQUENCY RANGE: 673.000-697.750MHz UHF Band, FM Stereo
• OSCILLATION MODE: PLL SYNTHESIZED
• FREQUENCY STABILITY: +/- 0.005%
• MAX. DEVIATION RANGE: +/- 68KHz
• FREQUENCY RESPONSE: 80 -15000Hz
• SENSITIVITY: -107dBm
• T.H.D.: <0.5%
• STEREO SEPARATION: 60dB
• OUTPUT JACK: 3.5mm STEREO HEADPHONE JACK
• POWER SUPPLY: 2xAA BATIERIES
• CURRENT CONSUMPTION: 150mA
