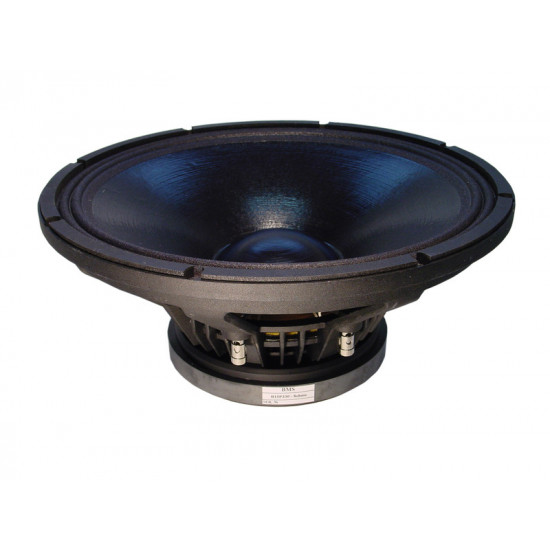

BMS 15S320

BMS 15S320
BMS 15S320
BMS 15S320
Hot
BMS 15S320
BMS 15S320
BMS 15S320
BMS 15S320
Based on 0 reviews. - Write a review
201.96€ / 395.00 лв.
  • Stock: In Stock
  • Model: BMS 15S320
BMS
Add to Cart

Buy with

13 x €17.96

Add to Wish List Compare this Product

Buy with

13 x €17.96

Първоначална вноска (евро)
Цена на стоките (евро  / лв.)
/
Брой погасителни вноски
Общо кредит (евро  / лв.)
/
Месечна вноска (евро  / лв.)
/
Фикс ГПР (%)
ГЛП (%)
Общо плащания (евро  / лв.)
/

15S320 Specification

Application Compact 2- or 3-way
Nominal Impendance:Ohm8
Power handling AES noise:W500
Sensitivity (1 W / 1 m):dB98
Frequency response:Hz40 - 2500
Voice Coil Diameter:mm77 (3")
Voice Coil Material: Cu
Voice Coil Winding Depth:mm19
Magnet Gap Depth:mm10
Basket: Cast Aluminum
Effect. diaphragm diameter Dmm335

Recommended reflex enclosure:
70 L / 50 Hz, -3 dB = 54 Hz, BRD = 140 mm / 155 mm long



15S320 Thiele-Small Parameters

Resonance Frequency:FsHz41
DC Resistance:ReOhm5.7
Mechanical Q Factor:Qms 5
Electrical Q Factor:Qes 0.29
Total Quality Factor:Qts 0.28
Equivalent Volume:VasL154
Moving Mass:Mmskg0.109
Mechanical Complience:Cmsmm / N0.14
BL Factor:BLTesla m23.3
Effective Piston Area:Sdm²0.0880
Max. linear Excursion:Xmaxmm+/- 4.5
Voice Coil Inductance:Le1kmH0.8
 Le10kmH0.52


15S320 Mounting Information

Overall Diameter:mm388
Mounting Holes Diameter:mm8 x (7 x 8)
Bolt Circle Diameter:mm371
Baffle cut-out Diameter:mm358
Overall depth:mm178
Net Weight:kg9
