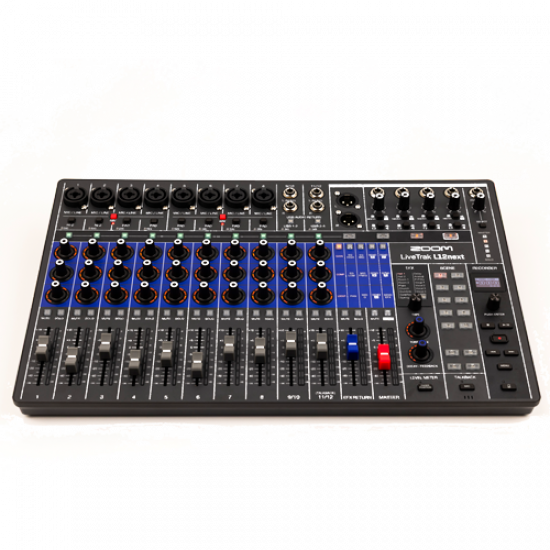

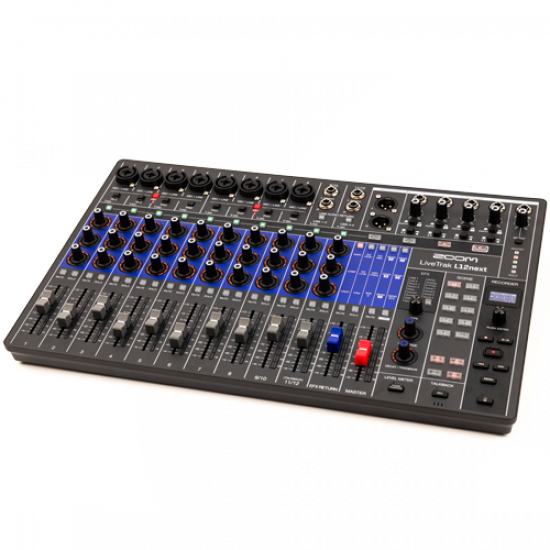

ZOOM LiveTrak L12next

Digital Mixer and Recorder

Digital Control with Analog Workflow.
The LiveTrak L12next Digital Mixer / Recorder

Digital Mixing Reimagined for Creators
The L12next combines the power of a digital mixer with analog-style operation. Three knobs per channel deliver High/Mid/Low EQ, and with a simple switch, you can adjust gain, pan, and sends, offering hands-on mixing like a classic analog console.

Made for Live Performance
The L12next puts you in total control, letting you mix with speed and confidence, whether you’re on stage or in the rehearsal room.

Everything You Need, On Every Channel

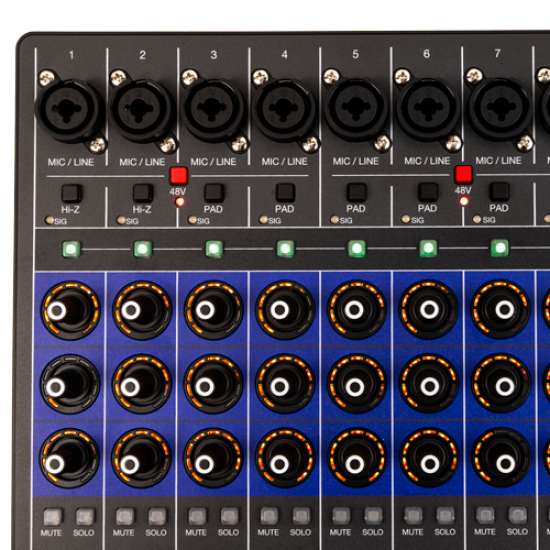

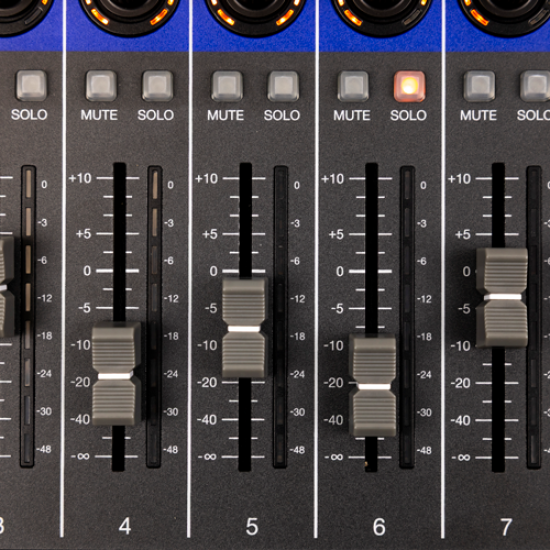

In addition to 60mm faders, each channel has three multi-function encoder knobs, giving you analog style control of gain, EQ, compression, panning, and sends. No more scrolling through menus.

Significantly Upgraded Preamps
The L12next’s upgraded preamps deliver clean gain (+70dB), low noise (–128 dBu EIN), and full input flexibility with Hi-Z, PAD, and +48 V phantom power.

A Recorder for Every Session

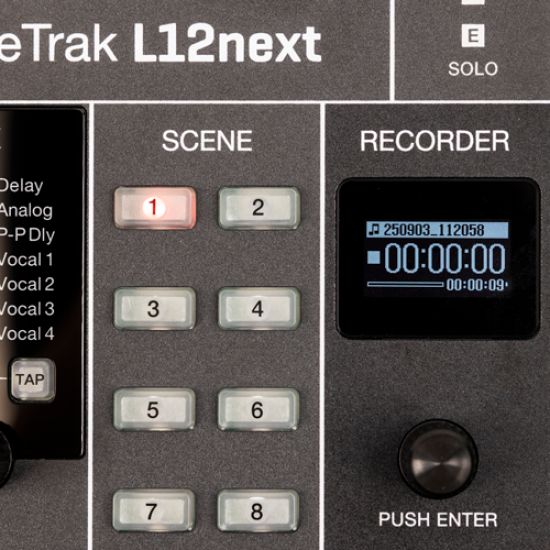

The L12next has advanced recording features and captures up to 14 tracks at 24-bit/96 kHz plus a stereo mix. Its new OLED screen streamlines recording controls and setup.

Technical Specifications:

Inputs

• Mono (MIC/LINE): 8
• Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
• Gain: PAD off: +16 to +60 dB; PAD on: ?10 to +34 dB; Hi-Z on: 0 to +44 dB
• Impedance: XLR ? 4.6 k?; TRS: 4.6 k? / 1 M? (Hi-Z on)
• Max input level: PAD off: ?2 dBu; PAD on: +24 dBu
• Phantom power: +48 V
• Stereo (LINE): 2
• Type: TS phone jacks (unbalanced)
• Max input level: +14 dBu

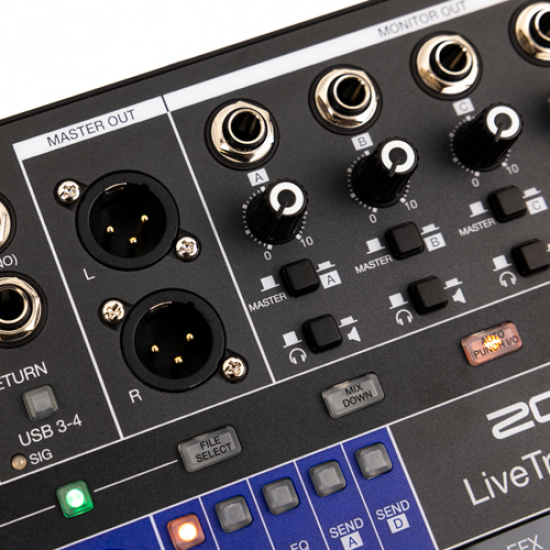

Outputs

• MASTER OUT: XLR jacks (balanced), Max output level: +14.5 dBu, Impedance: 200 ?
• MONITOR OUT: Stereo phone jacks, Max output: 42 mW + 42 mW at 60 ?, Impedance: 55 ?

Buses

• MASTER: 1
• MONITOR: 5
• SEND EFX: 1

• Level meters: 8 segments

• Send effects: 16 types

Recorder

• Recording: 14 tracks, Playback: 12 tracks
• Formats: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo; Master: 16/24-bit or 32-bit float
• Media: SDHC (4–32 GB), SDXC (64 GB–1 TB), Class 10+

Audio Interface

• USB 2.0, Sample rates: 44.1/48/96 kHz; Bit depths 24-bit, 32-bit float
• Input and output channels: Recording: 14 channels; Playback: 4 channels
• Frequency response: 44.1 kHz ?1.0 dB (20 Hz–20 kHz), 96 kHz ?3.0 dB (20 Hz–40 kHz)
• EIN: ?128 dB (IHF-A) at +60 dB / 150 ? input

Display

• 128 ? 64 OLED

Card reader

• Mass storage class USB 2.0 High Speed

Power

• AC adapter (ZOOM AD-19): DC 12V/2A
