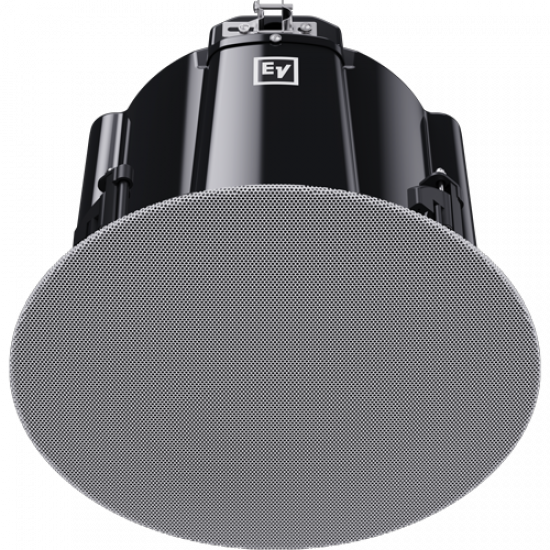

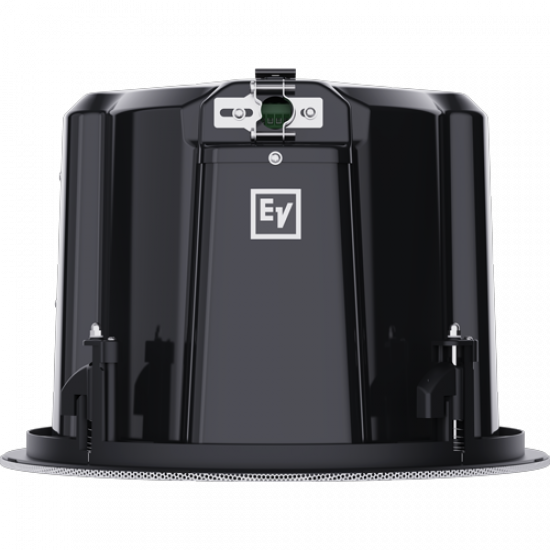

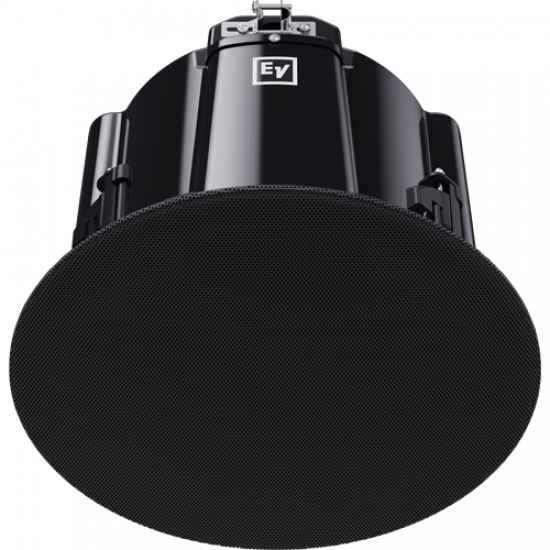

Говорител за вграждане Electro-Voice EVID-C8.1S-G2

Frequency range (-10 dB) (Hz) 45 Hz – 380 Hz
Maximum SPL (continuous) (dB) - 113 dB
Maximum SPL (peak) (dB) - 119 dB
Sensitivity (1 W, 1 m) 90 dB SPL 1 W, 1 m
Specifications
Coverage angle conical - 360°
Power handling (continuous) (W) 180 W
Power handling (peak) (W) 4 720 W
Long term power handling (continuous) (W) - 150 W
Long term power handling (peak) (W) - 600 W
Nominal impedance (?) (Low Z) - 8 ohm
Transformer taps 70 V line (W) 60 W; 30 W; 15 W; 7.5 W; 3.75 W
Transformer taps 100 V line (W) 60 W; 30 W; 15 W; 7.5 W

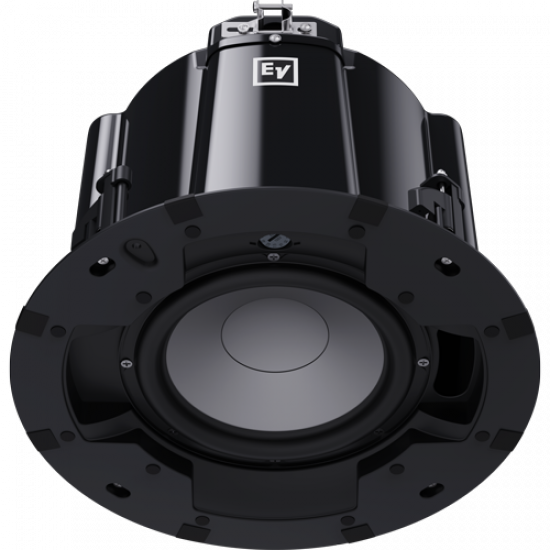

LF transducer size (in) 8 in
Material Steel
Grille material Powder coated steel

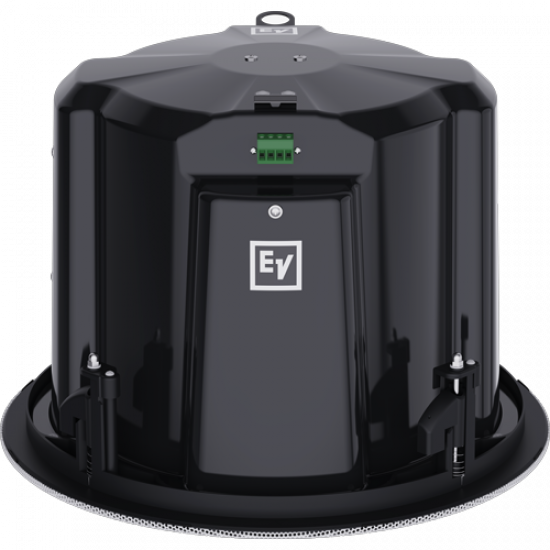

Connector type 4-pin Euroblock
Input + Pass through
Wire size (AWG) 12AWG (maximum)
Wire diameter (mm2) 3.3 mm2 (maximum)
Color White; Customized colors
Color (RAL) RAL 9003 Signal white
Mounting cutout (in) 12.7 in
Mounting cutout (mm) 322 mm
Dimensions (O x D) (in) 13.9 in x 9.9 in
Dimensions (O x D) (mm) 353 mm x 350.7 mm
Mounting depth (in) 9.5 in
Mounting depth (mm) 240 mm
Ceiling thickness (in) 0.5 in - 1.5 in
Ceiling thickness (mm) 12.5 mm - 38 mm
Weight (lb) 7 16 lb
Weight (kg) 7 7.25 kg
Shipping weight (lb) 8 40.8 lb
Shipping weight (kg) 8 18.5 kg
IP rating IP34
Weatherization Indoor
