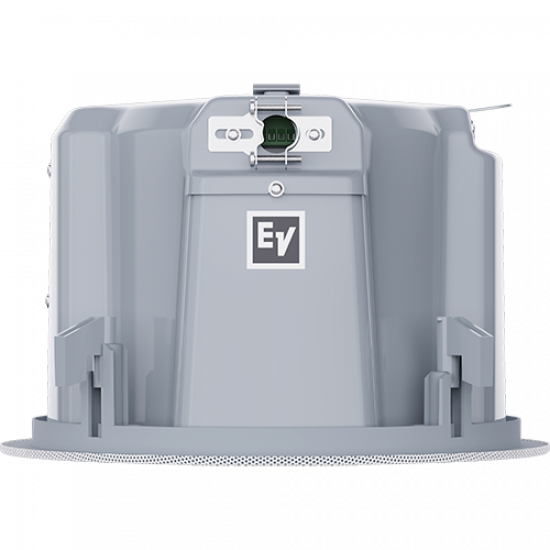

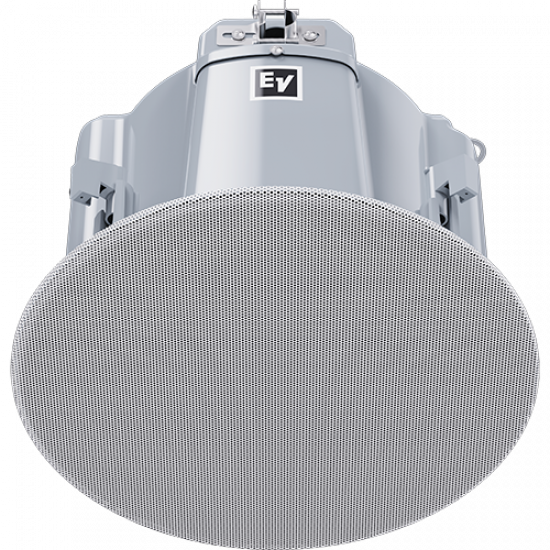

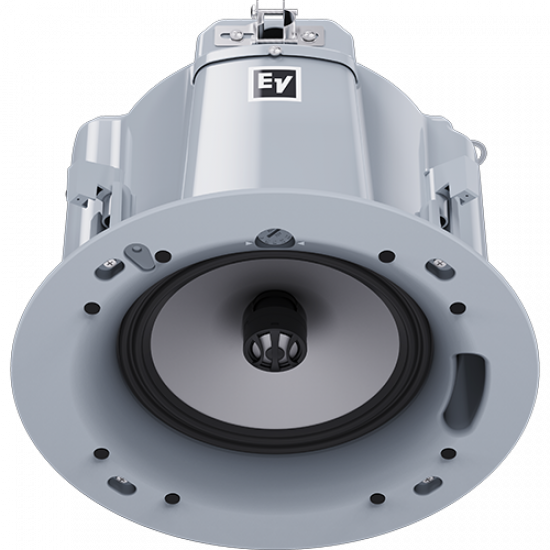

Говорител за вграждане Electro-Voice EVID-EC8.2

2 Way Ceiling speaker

Frequency range (-10 dB) (Hz) 60 Hz – 20,000 Hz
Maximum SPL (continuous) (dB) 110 dB
Maximum SPL (peak) (dB) 116 dB
Sensitivity (1 W, 1 m) 90 dB SPL 1 W, 1 m
Specifications
Coverage angle conical 90°
Power handling (continuous) (W) 90 W
Power handling (peak) (W) 360 W
Long term power handling (continuous) (W) 75 W
Long term power handling (peak) (W) 300 W
Nominal impedance (Low Z) 8 ohm
Recommended high pass (Hz) 6 50 Hz
Transformer taps 70 V line (W) 60 W; 30 W; 15 W; 7.5 W; 3.75 W
Transformer taps 100 V line (W) 60 W; 30 W; 15 W; 7.5 W
LF transducer size (in) 8 in
HF transducer size (in) 1 in
Material Steel
Grille material Powder coated steel
Connector type 4-pin Euroblock
Input + Pass through
Wire size (AWG) 12AWG (maximum)
Wire diameter (mm2) 3.3 mm2 (maximum)
Color White; Customized colors
Color (RAL) RAL 9003 Signal white
Mounting cutout (in) 10.7 in
Mounting cutout (mm) 272 mm
Dimensions (O x D) (in) 11.9 in x 9.8 in
Dimensions (O x D) (mm) 302 mm x 249.2 mm
Mounting depth (in) 9.6 in
Mounting depth (mm) 244 mm
Ceiling thickness (in) 0.5 in - 1.5 in
Ceiling thickness (mm) 12.5 mm - 38 mm
Weight (lb) 13.20 lb
Weight (kg) 6 kg
Shipping weight (lb) 22 lb
Shipping weight (kg) 10 kg
IP rating IP34
Weatherization Indoor
