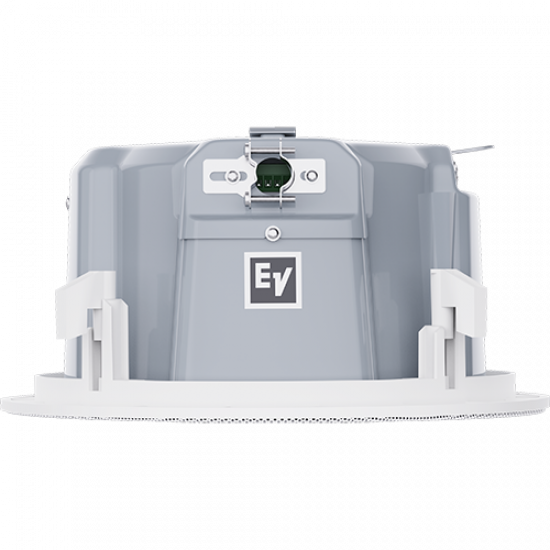

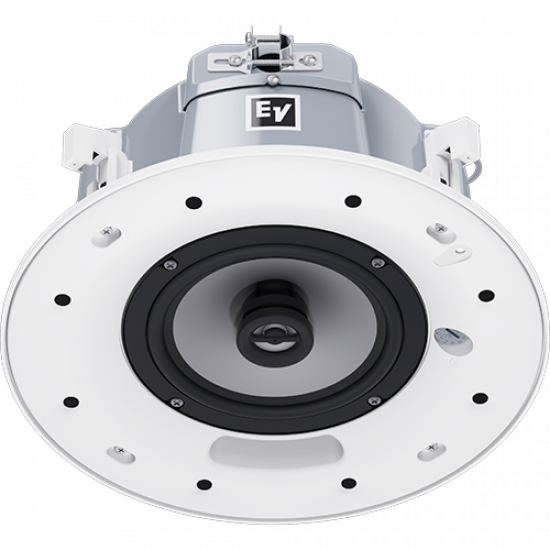

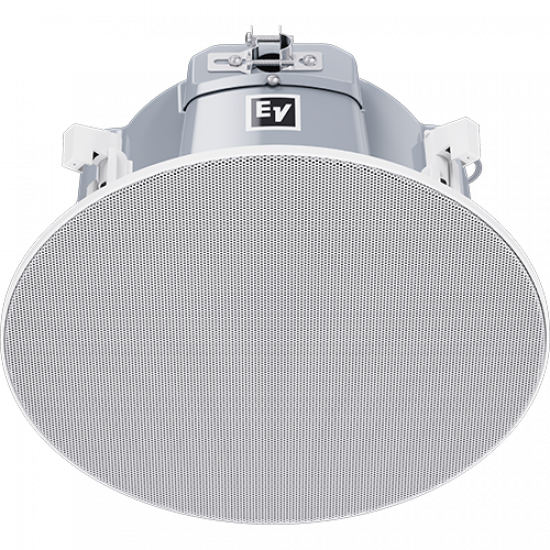

Говорител за вграждане Electro-Voice EVID-EC6.2E

2 Way Ceiling speaker

Frequency range (-10 dB) (Hz) 85 Hz – 20,000 Hz
Maximum SPL (continuous) (dB) 107 dB
Maximum SPL (peak) (dB) 113 dB
Sensitivity (1 W, 1 m) 82 dB SPL 1 W, 1 m
Coverage angle conical 110°
Power handling (continuous) (W) 30 W
Power handling (peak) (W) 120 W
Long term power handling (continuous) (W) 30 W
Long term power handling (peak) (W) 120 W
Nominal impedance (Low Z) 8 Ohm
Specifications
Recommended high pass (Hz) 90 Hz
Transformer taps 70 V line (W) 30 W, 15 W, 7.5 W, 3.75 W, 1.88 W
Transformer taps 100 V line (W) 30 W, 15 W, 7.5 W, 3.75 W
LF transducer size (in) 6.5 in
HF transducer size (in) 1 in
Material Steel
Grille material Powder coated steel
Connector type 4-pin Euroblock
Input + Pass through
Wire size (AWG) 12AWG (maximum)
Wire diameter (mm2) 3.3 mm2 (maximum)
Color White; Customized colors
Color (RAL) RAL 9003 Signal white
Mounting cutout (in) 10.7 in
Mounting cutout (mm) 272 mm
Dimensions (O x D) (in) 12.1 in x 6.1 in
Dimensions (O x D) (mm) 307.20 mm x 153.8 mm
Mounting depth (in) 5.9 in
Mounting depth (mm) 149 mm
Ceiling thickness (in) 0.5 in - 1.5 in
Ceiling thickness (mm) 12.5 mm - 38 mm
Weight (lb) 7 22 lb
Weight (kg) 7 2.5 kg
Shipping weight (lb) 22 lb
Shipping weight (kg) 10 kg
IP rating IP34
