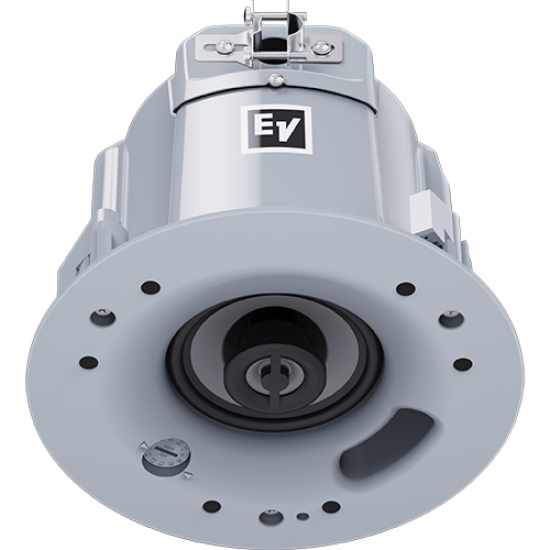

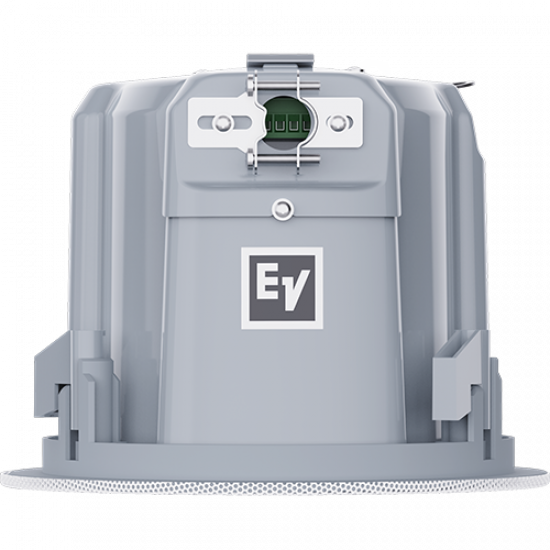

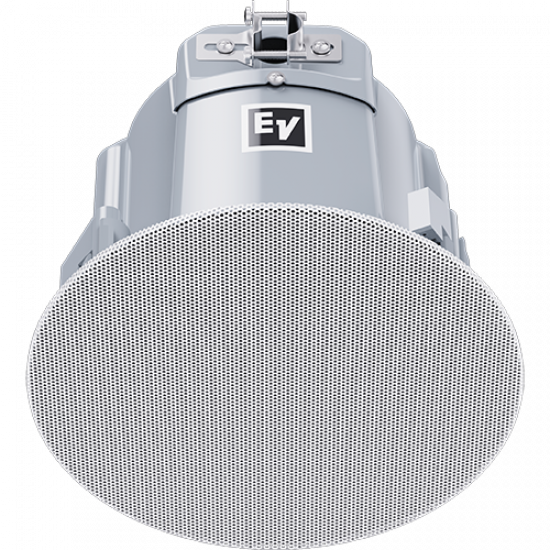

Говорител за вграждане Electro-Voice EVID-EC4.2

2 Way Ceiling speaker

Frequency range (-10 dB) (Hz) 80 Hz – 2,0000 Hz
Maximum SPL (continuous) (dB) 106 dB
Maximum SPL (peak) (dB) 112 dB
Sensitivity (1 W, 1 m) 89 dB SPL 1 W, 1 m
Coverage angle conical 130°
Power handling (continuous) (W) 50 W
Power handling (peak) (W) 200 W
Long term power handling (continuous) (W) 40 W
Long term power handling (peak) (W) 160 W
Nominal impedance (?) (Low Z) 8 Ohm
Specifications
Recommended high pass (Hz) 90 Hz
Transformer taps 70 V line (W) 20 W; 10 W; 5 W; 2.5 W; 1.25 W
Transformer taps 100 V line (W) 20 W; 10 W; 5 W; 2.5 W
LF transducer size (in) 4 in
HF transducer size (in) 0.75 in
Material Steel
Grille material Powder coated steel
Connector type 4-pin Euroblock
Input + Pass through
Wire size (AWG) 12AWG (maximum)
Wire diameter (mm2) 3.3 mm2 (maximum)
Color White; Customized colors
Color (RAL) RAL 9003 Signal white
Mounting cutout (mm) 183 mm
Dimensions (O x D) (mm) 212 mm x 163.4 mm
Mounting depth (mm) 158 mm
Ceiling thickness (in) 0.5 in - 1.5 in
Ceiling thickness (mm) 12.5 mm - 38 mm
