ROLAND SPD-SX PRO

​Sampling Pad - Nine pads with Roland’s advanced trigger technology, including six large pads and three top-row shoulder pads • WARRANTY: 3 years


• High-visibility, horizontal and vertical LEDs with multi-color customization
• Increased shoulder pad sensitivity and improved crosstalk performance
• Import 48/44.1 kHz (16-/24-/32-bit) WAV/AIFF files and MP3s (32–320 kbps) with automatic conversion to 48 kHz/16-bit upon loading
• Stereo main output, four direct mono outputs, balanced for easy mixing on stage
• Connectivity for up to eight external individual triggers/pads (four stereo triggers or eight mono triggers with Y-cables)
• 32 GB of internal storage for samples, backing tracks, and click tracks
• Input for hi-hat or footswitch expression control
• Connect hi-hats, kick, and snare for a ‘mini drum kit’ setup
• Up to 200 kit patches (43 erasable preset kits and 157 user kits)
• Over 1550 pre-loaded, high-quality samples and sounds
• Onboard effects engine with up to four effects in parallel, plus side chain with output routing
• Create in real time by recording performances as WAV files and assigning them to pads





Specifications

Built-in Pads: 9 (with PAD LED, Vertical LED)
Maximum Polyphony: 32 voices (included click voices)
Number of Recordable Wave Data: 20,000

Sampling Time:
Sampling from AUDIO IN : 60 minutes per sample
Resampling : 10 minutes per sample
Sampling Frequency: 48 kHz

Kits: 200

System Effects
Master Effects (53 types)
Master Compressor
Master Equalizer

Power Supply: DC 12V (AC Adaptor)
Current Draw: 1,500 mA

Accessories
Quick Start
Leaflet "Read Me First"
Leaflet "USING THE UNIT SAFELY/IMPORTANT NOTES"
AC Adaptor

Options (SOLD SEPARATELY)

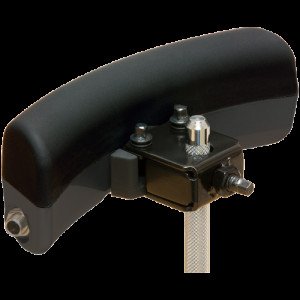

Pads (PD series, PDX series, BT-1)
Cymbals (CY series)
Hi-Hat (VH-10, VH-11)
Kick Triggers (KD series, KT series)
Pad Stand (PDS-20, PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30K, RT-30HR, RT-30H)
Hi-Hat Pedal(FD-8, FD-9, VH-10, HV-11)
Expression Pedal(BOSS EV-30)
Pedal Switch(DP-2)
Foot Switch (BOSS FS-5U, FS-6, FS-7)
Y cable (PCS-31L)
USB Flash Memory

Size and Weight

Width (W): 360 mm
Depth (D): 330.3 mm
Height (H): 92.9 mm
Weight: 3.0 kg
